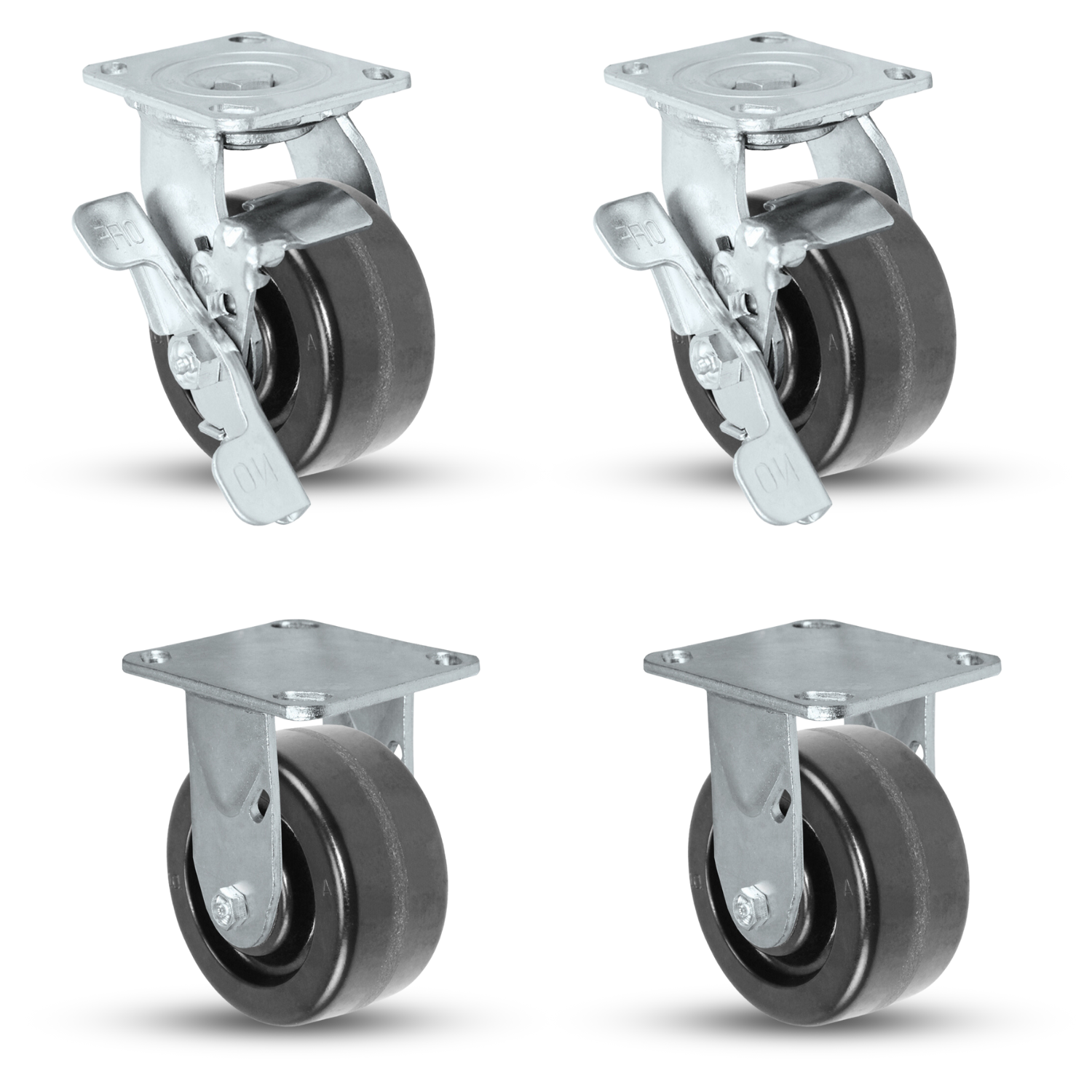

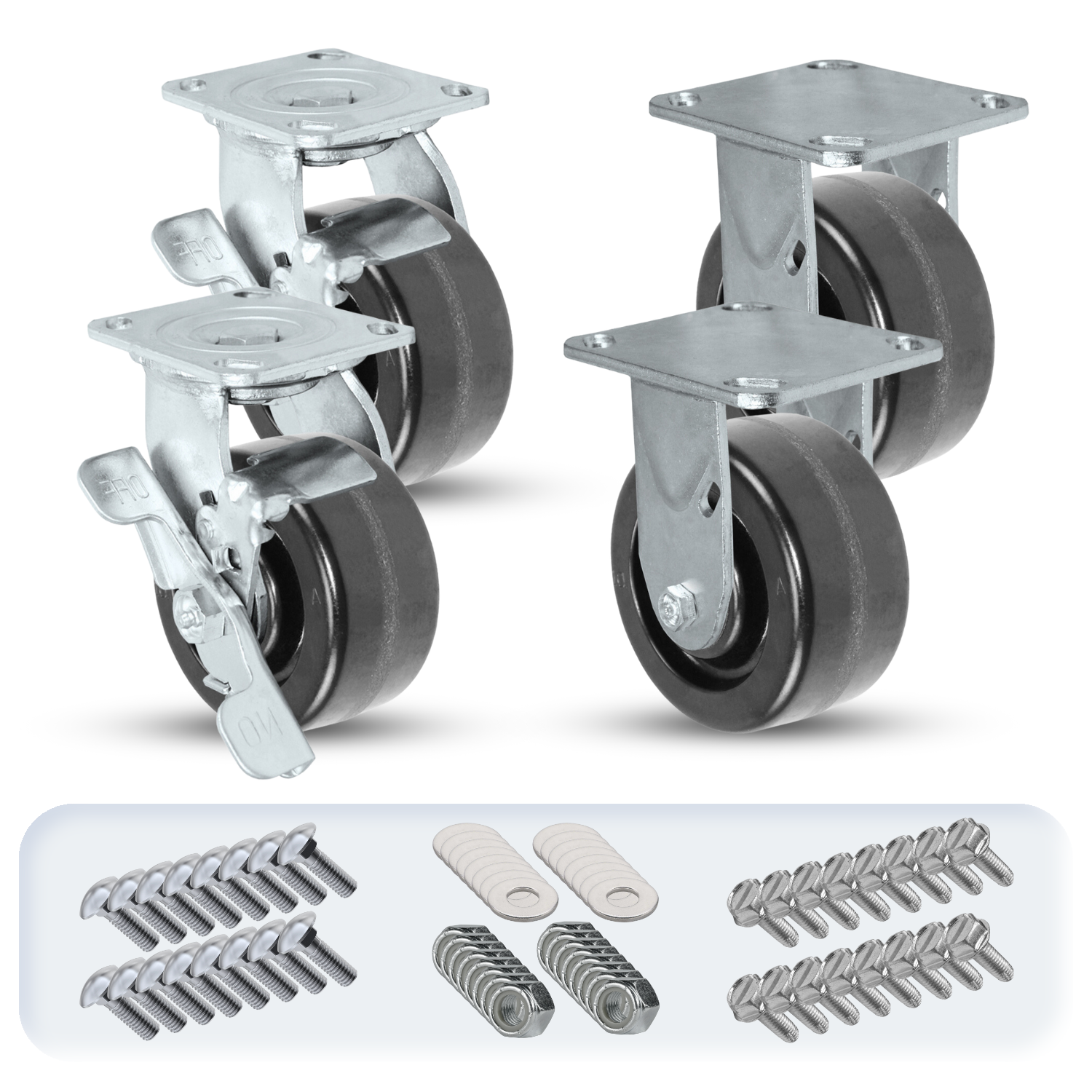

4" x 2" Phenolic Caster Set | 2 Swivel Brakes & 2 Rigid

4" x 2" Phenolic Caster Set | 2 Swivel Brakes & 2 Rigid

Regular price $110.99 USD
Regular price Sale price $110.99 USD
Sale Sold out
Shipping calculated at checkout.

4" x 2" Swivel Caster Set with Brakes & Rigid Casters - Phenolic Wheel - 2,800 Lbs Capacity

Introducing our premium 4-inch by 2-inch Caster Set, featuring two swivel casters with brakes and two rigid casters, designed for dynamic and reliable performance. Part of our acclaimed Medium Duty 'HD' Series, these casters are renowned in a plethora of industries for their exceptional quality, functionality, and durability. Ideal for medium-duty applications, they boast a substantial 2,800 lbs total capacity and are available with fast delivery and competitive pricing.

Technical Specifications:

Wheel Material Phenolic
Wheel Diameter 3-1/4 inches
Wheel Tread Width 2 inches
Load Capacity 700 lbs each | 2,800 lbs per set of 4

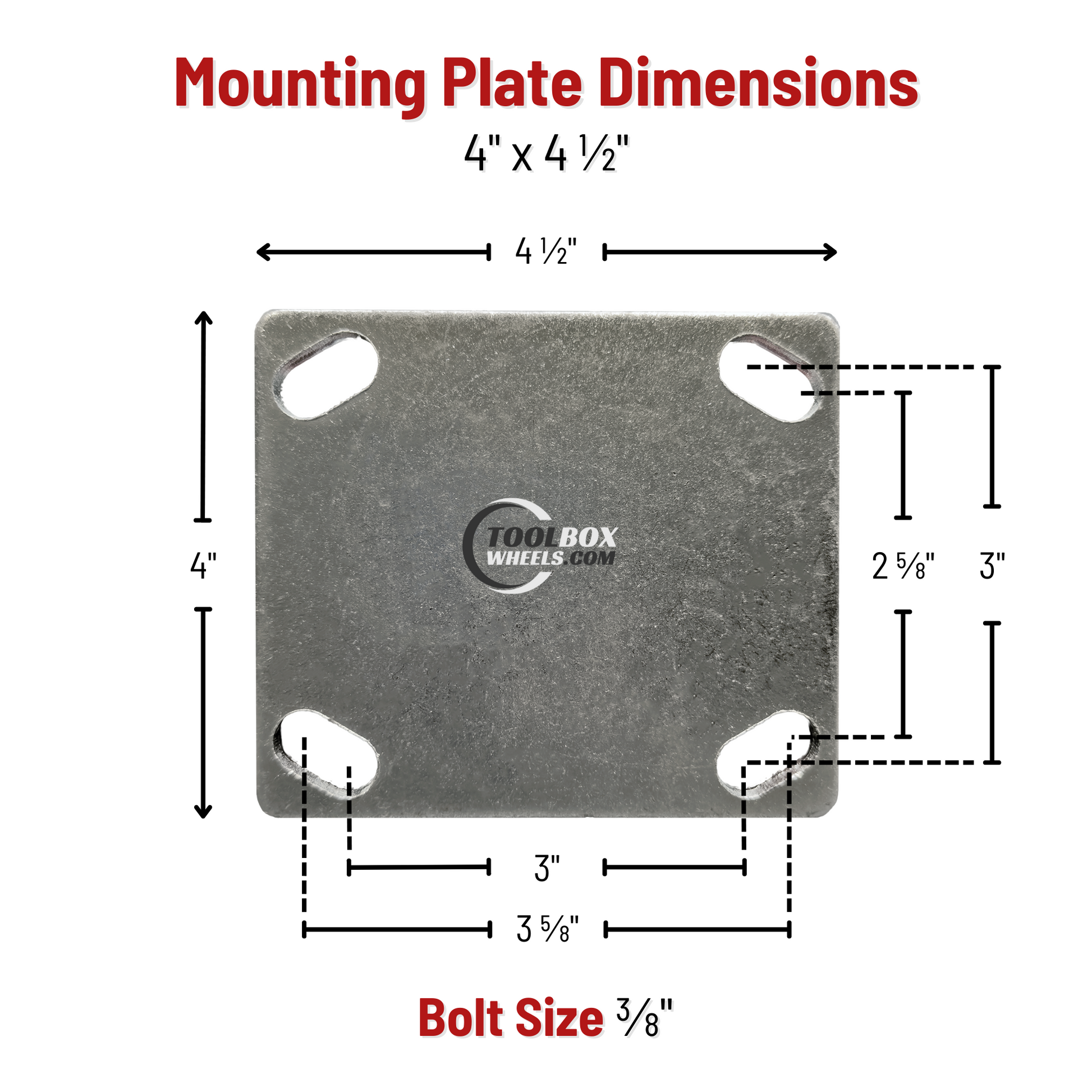

Top Plate Size 4" x 4-1/2"
Bolt Hole Spacing 2-5/8" x 3-5/8" (Slotted to 3" x 3")
Swivel Radius 3-1/2 inches (Increases with certain brake options)
Wheel Durometer 90 SHORE D (±/-5)
Mounting Bolt Size 3/8 inch
Overall Height 5-5/8 inches
Bearing Type Roller Bearing or Precision Bearing
Wheel Color Black
Temperature Range -50°F – 250°F
Caster Bracket Material Zinc Plated Steel
Grease Zerk Yes
Axle Zerk Axle


Key Features:

  • Versatile Functionality: Perfect for carts, trucks, dollies, racks, and equipment in industries like warehousing, hospitality, institutional, food service, and retail.
  • Robust Design: Made from 1/4" thick cold-rolled steel, ensuring resilience under medium-duty use.
  • Enhanced Mobility: Double ball raceways and a 5/8" nut & king-pin provide smooth movement and stability.
  • Brake System: Two swivel casters come with efficient brakes for secure stationary use.
  • Customization Options: Available in rivet kingpin and kingpinless versions for diverse application needs.
  • OEM Preferred Series: Trusted and used extensively in various industries.
  • NSF Listed: Majority of this series and wheels meet rigorous NSF standards for quality and safety.
  • RoHS Compliant: Adheres to strict environmental and health standards.
  • Double Ball Raceway with 5/8” Kingbolt: Ensures smooth operation and increased durability.
  • Total Lock Casters Available: Offers matching total-locking casters for complete immobility and stability.
  • Grease Fitting in Raceway & Axle: Allows for easy maintenance and longevity.
  • Zinc Plated: Provides rust and corrosion resistance for enhanced durability.
  • Phenolic Wheel - Strong as Steel: Delivers strength and durability comparable to steel wheels.
  • Non-Marking Wheel: Ensures floor protection by preventing marks and scratches.
  • High Chemical Resistance: Ideal for environments where chemical resistance is necessary.

Product Code: HQ-2040-PL1-PHR-2SB2R
