4" x 2" Phenolic Caster Set | 4 Swivels with Brakes

4" x 2" Phenolic Caster Set | 4 Swivels with Brakes

Regular price $129.99 USD
Regular price Sale price $129.99 USD
Sale Sold out
Shipping calculated at checkout.

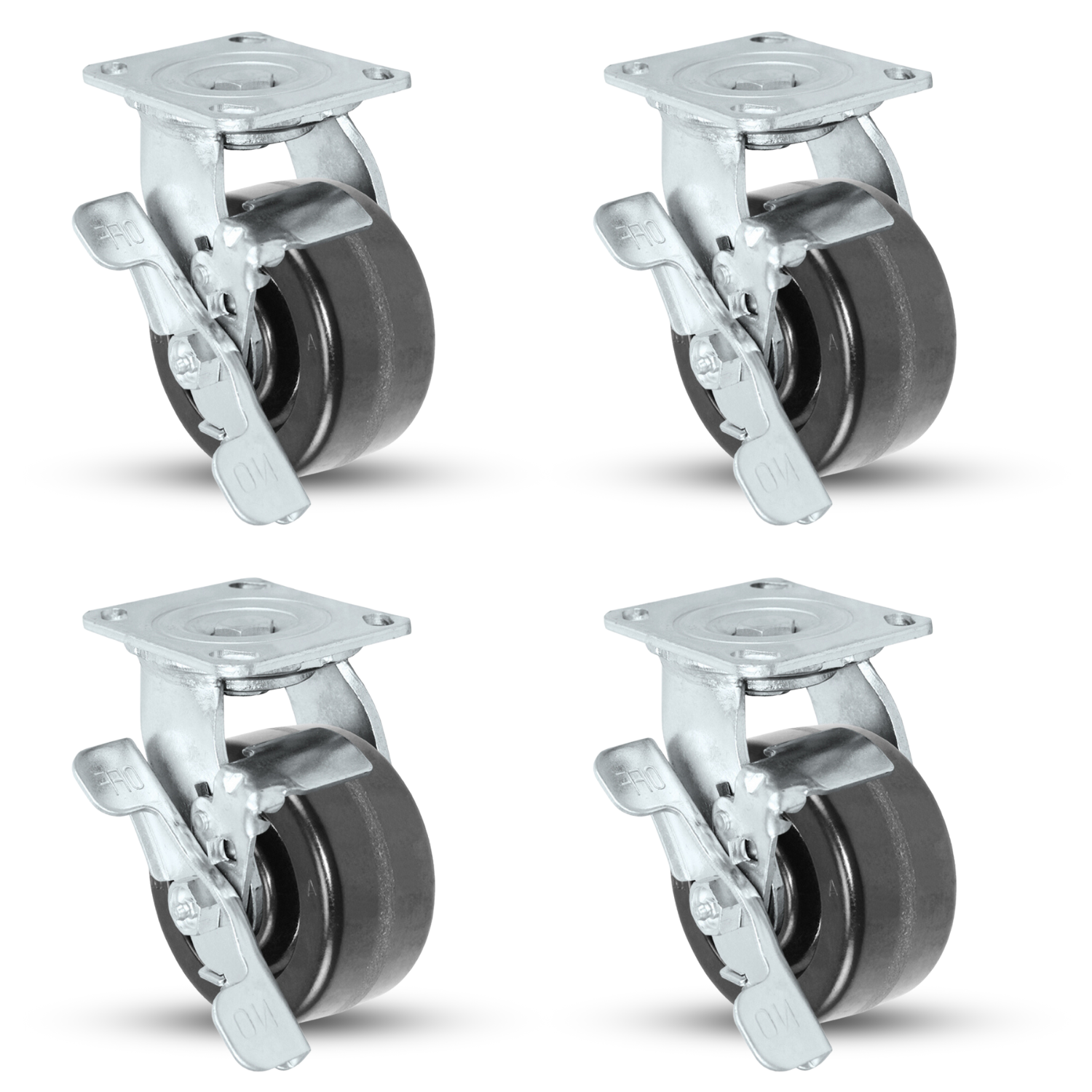

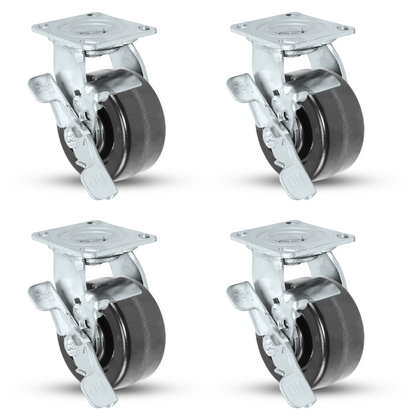

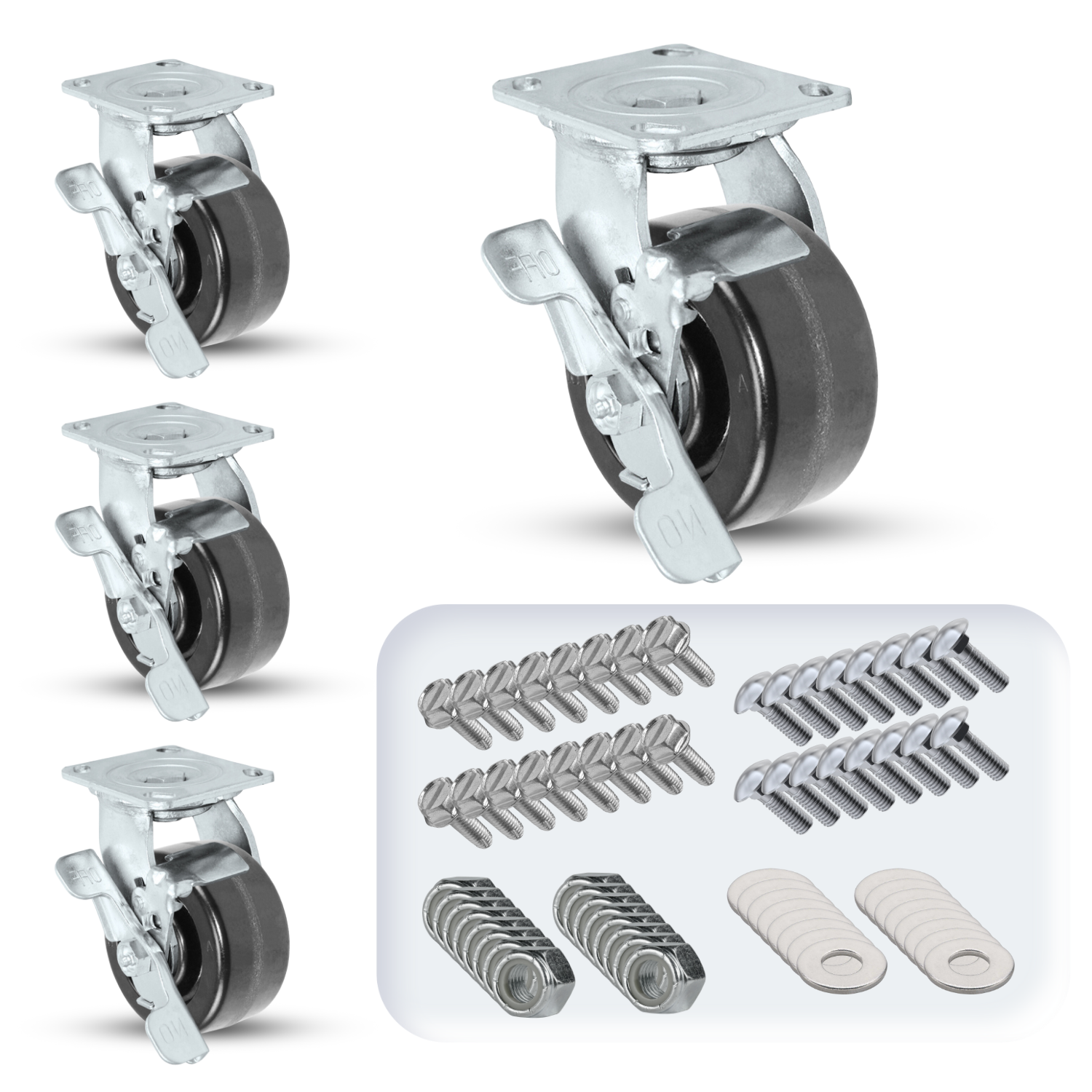

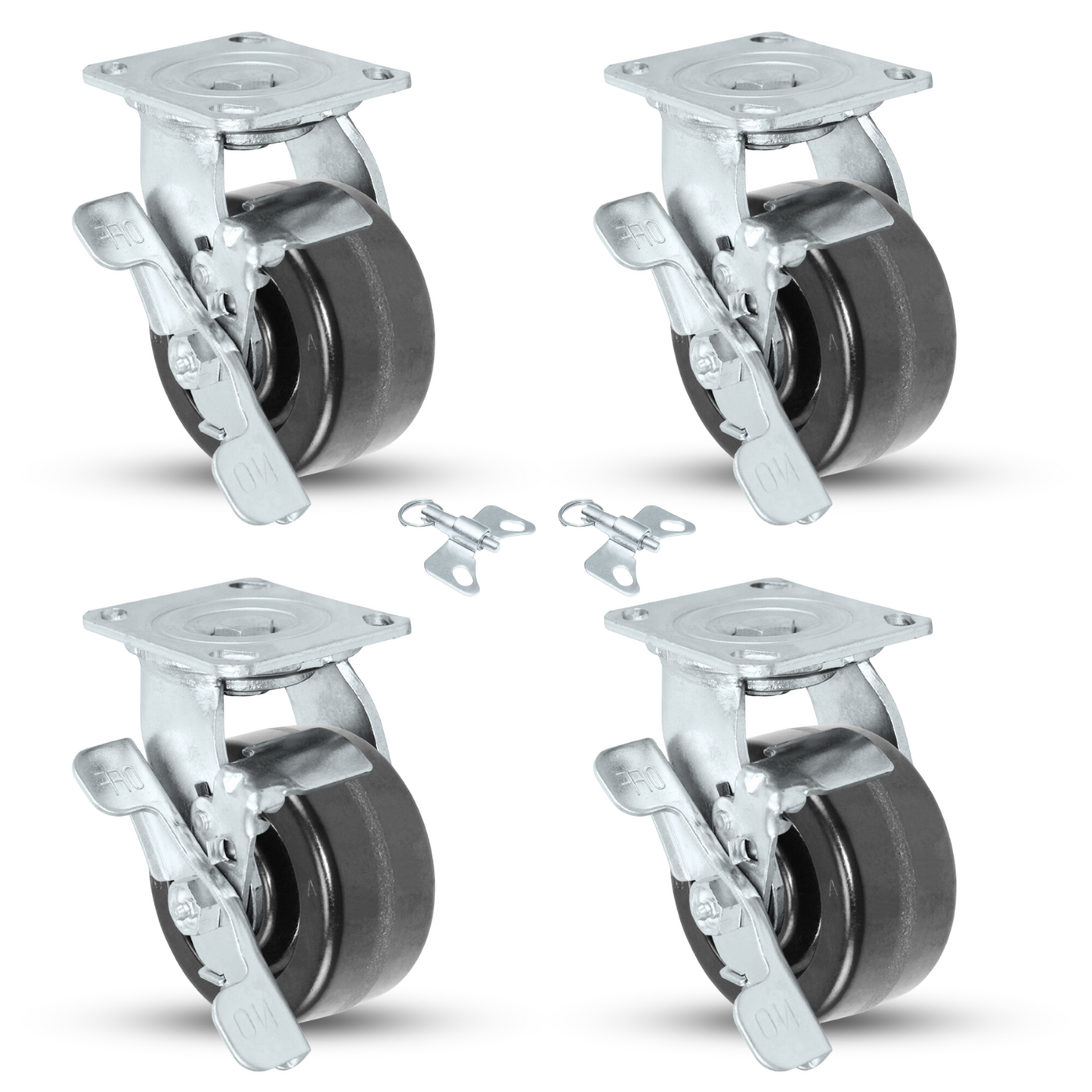

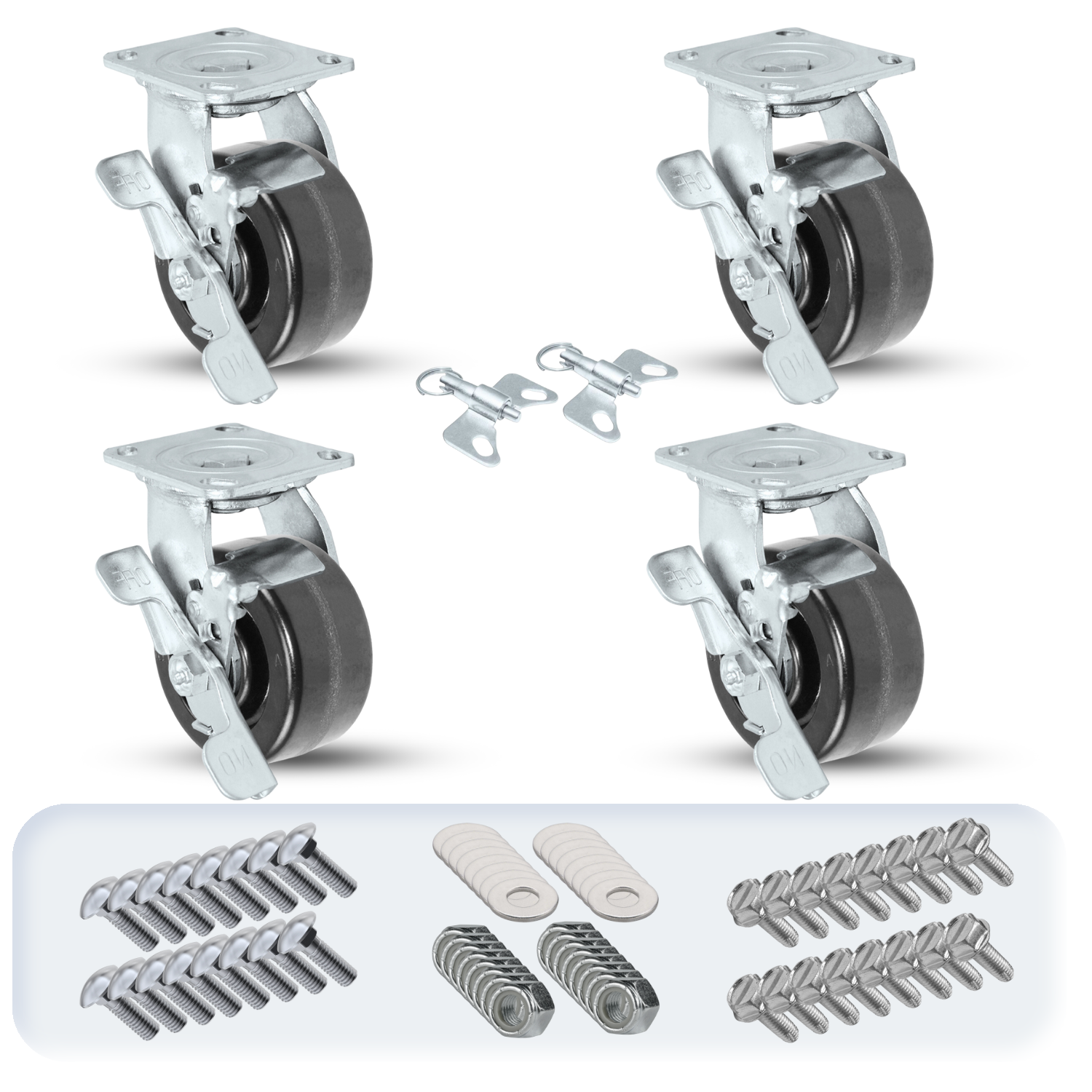

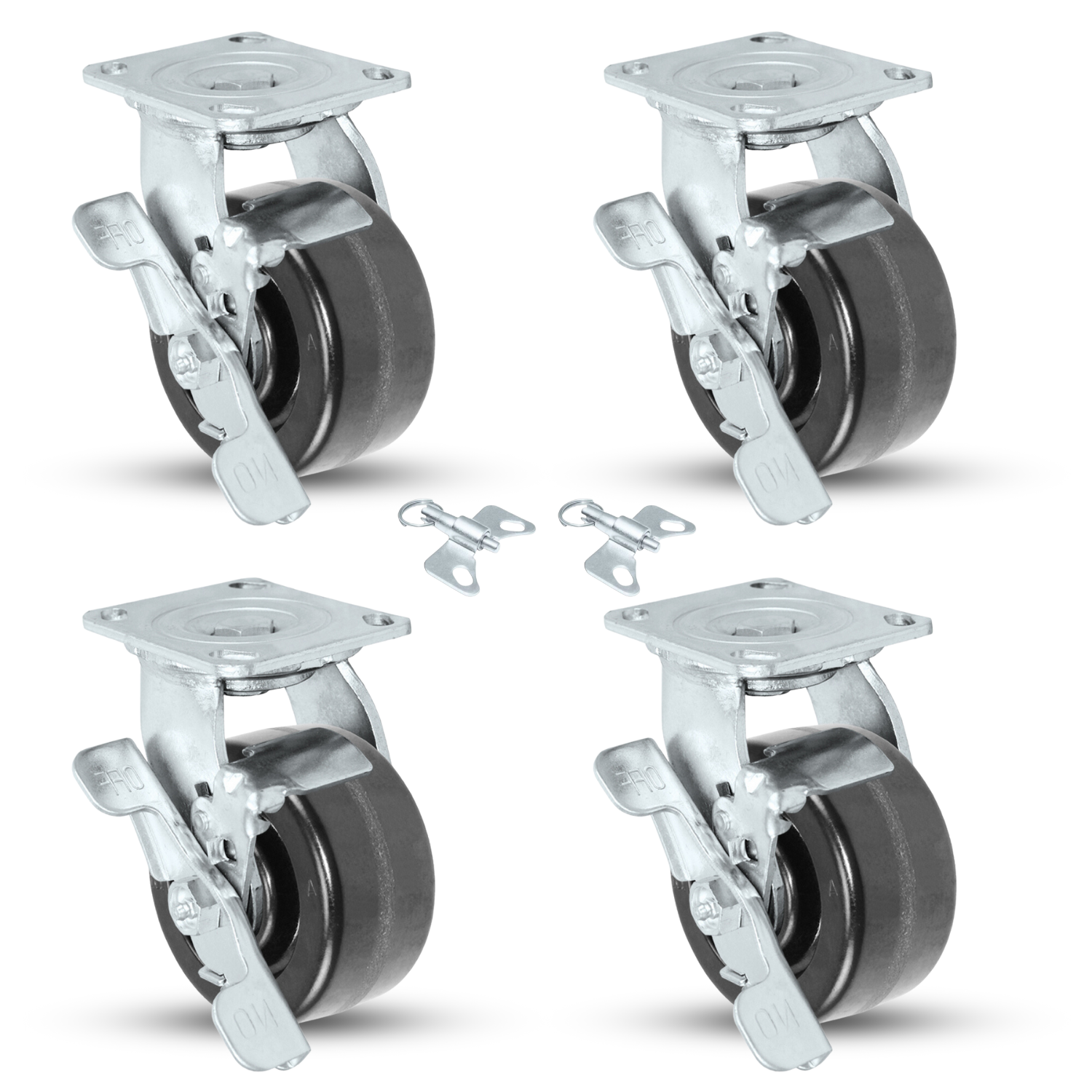

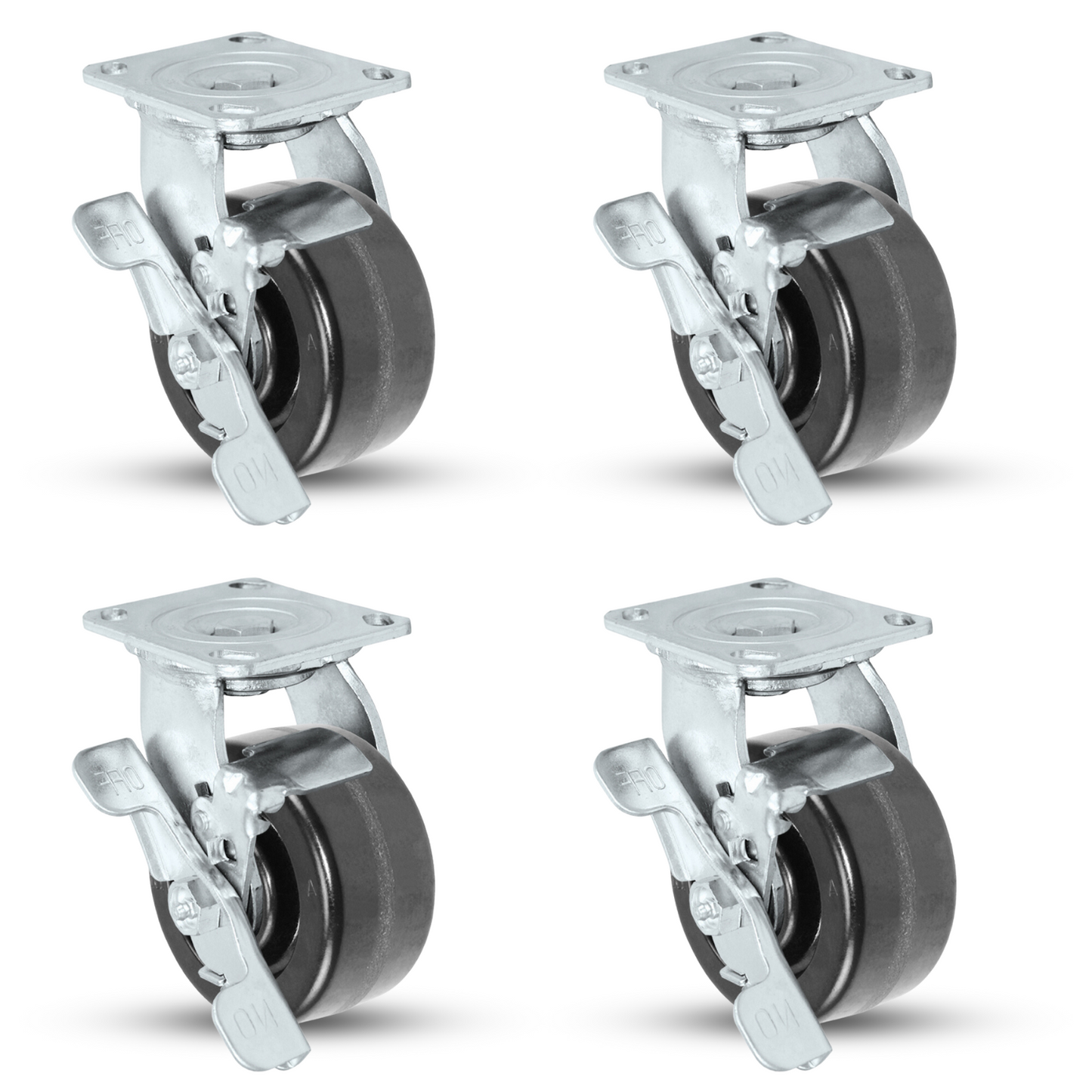

4" x 2" Swivel Caster with Brakes - HD Series - Set of 4 - Phenolic Wheel - 3,200 Lbs Capacity

Introducing our top-selling Medium Duty 'HD' Series swivel casters, renowned for their robust quality, efficiency, and value. This series, featuring a set of 4 swivel casters with brakes, is crafted from 1/4" thick cold rolled steel for maximum durability and performance. Ideal for a wide range of medium-duty applications, these casters are designed to handle the demands of numerous industries with ease.

Technical Specifications:

Wheel Material Phenolic
Wheel Diameter 4 inches
Wheel Tread Width 2 inches
Load Capacity 800 lbs each / 3,200 lbs per set of 4

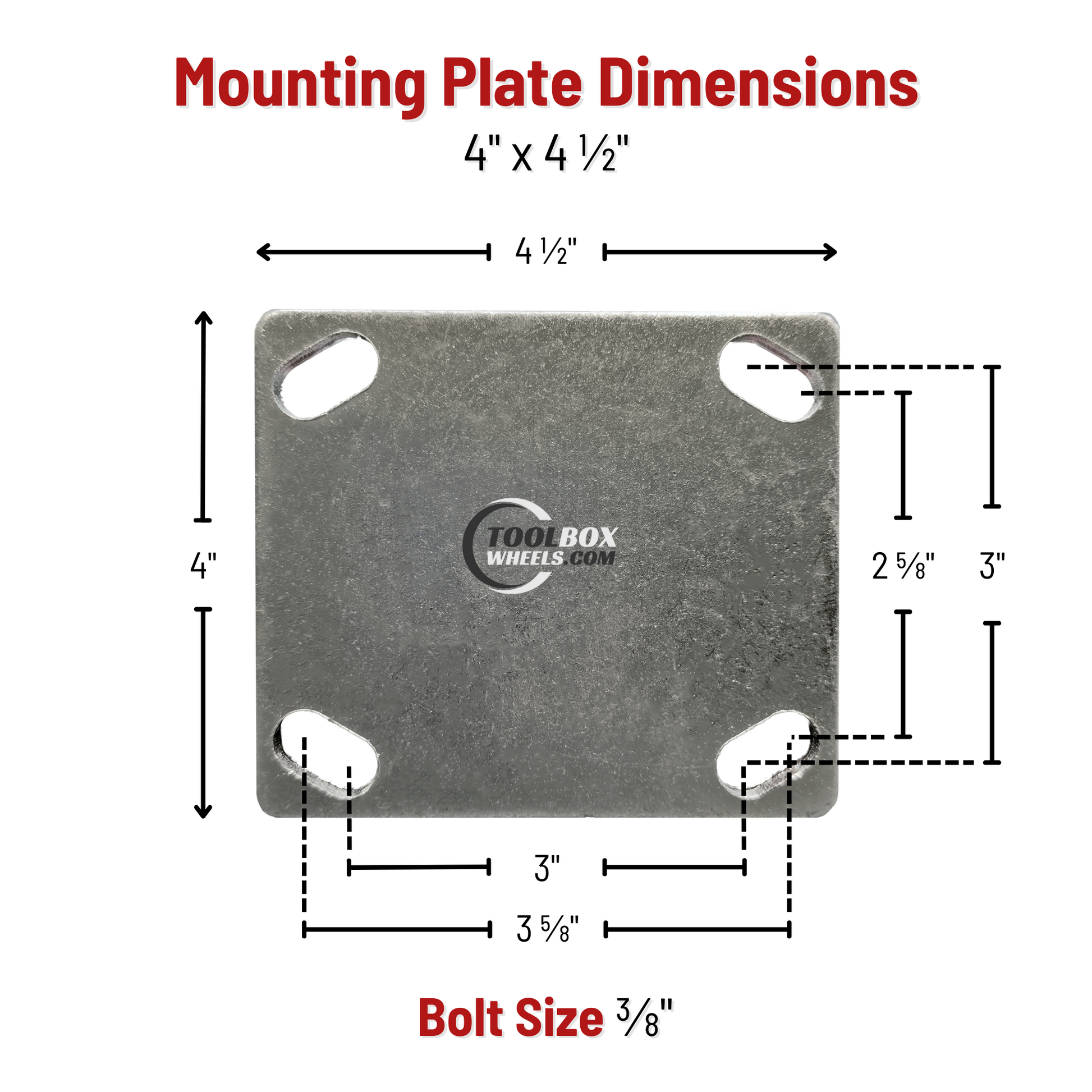

Top Plate Size 4” x 4-1/2”
Bolt Hole Spacing 2-5/8” x 3-5/8” (Slotted to 3” x 3”)
Swivel Radius 3-1/2 inches (may increase with certain brake options)
Wheel Durometer 90 SHORE D (±5)
Mounting Bolt Size 3/8 inch
Overall Height 5-5/8 inches
Bearing Type Roller Bearing or Precision Bearing
Wheel Color Black
Temperature Range -50°F to 250°F
Caster Bracket Material Zinc Plated Steel
Grease Zerk Yes
Axle Zerk Axle

Key Features:

  • Robust Construction: Made with 1/4" thick cold rolled steel, ensuring longevity and reliability.
  • Versatile Applications: Perfect for carts, trucks, dollies, racks, and equipment in various industries including industrial, warehousing, hospitality, and more.
  • Exceptional Mobility: Designed, formed, and welded for optimal mobility, capable of withstanding medium-duty rigors and abuse.
  • Enhanced Control: Equipped with brakes for safe and efficient handling in dynamic environments.

Additional Features:

  • OEM Preferred Series: Highly favored in original equipment manufacturing.
  • NSF Listed: Majority of this series and wheels meet NSF standards.
  • RoHS Compliant: Adherence to strict RoHS guidelines.
  • Double Ball Raceway with 5/8” Kingbolt: Ensures smooth swivel action and durability.
  • Matching Total Lock Casters Available: Offers complete stability when stationary.
  • Grease Fitting in Raceway & Axle: For easy maintenance and longevity.
  • Zinc Plated: Provides rust and corrosion resistance.
  • Phenolic Wheel: Strong as steel yet non-marking and resistant to chemicals.
  • Non-Marking Wheel: Protects floor surfaces from damage.
  • Chemical Resistance: Ideal for harsh environments.

Product Code: HQ-2040-PL1-PHR-4SB
