4" x 2" Phenolic Casters Set | 4 Swivels
4" x 2" Phenolic Casters Set | 4 Swivels
Regular price
$98.00 USD
Regular price
Sale price
$98.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

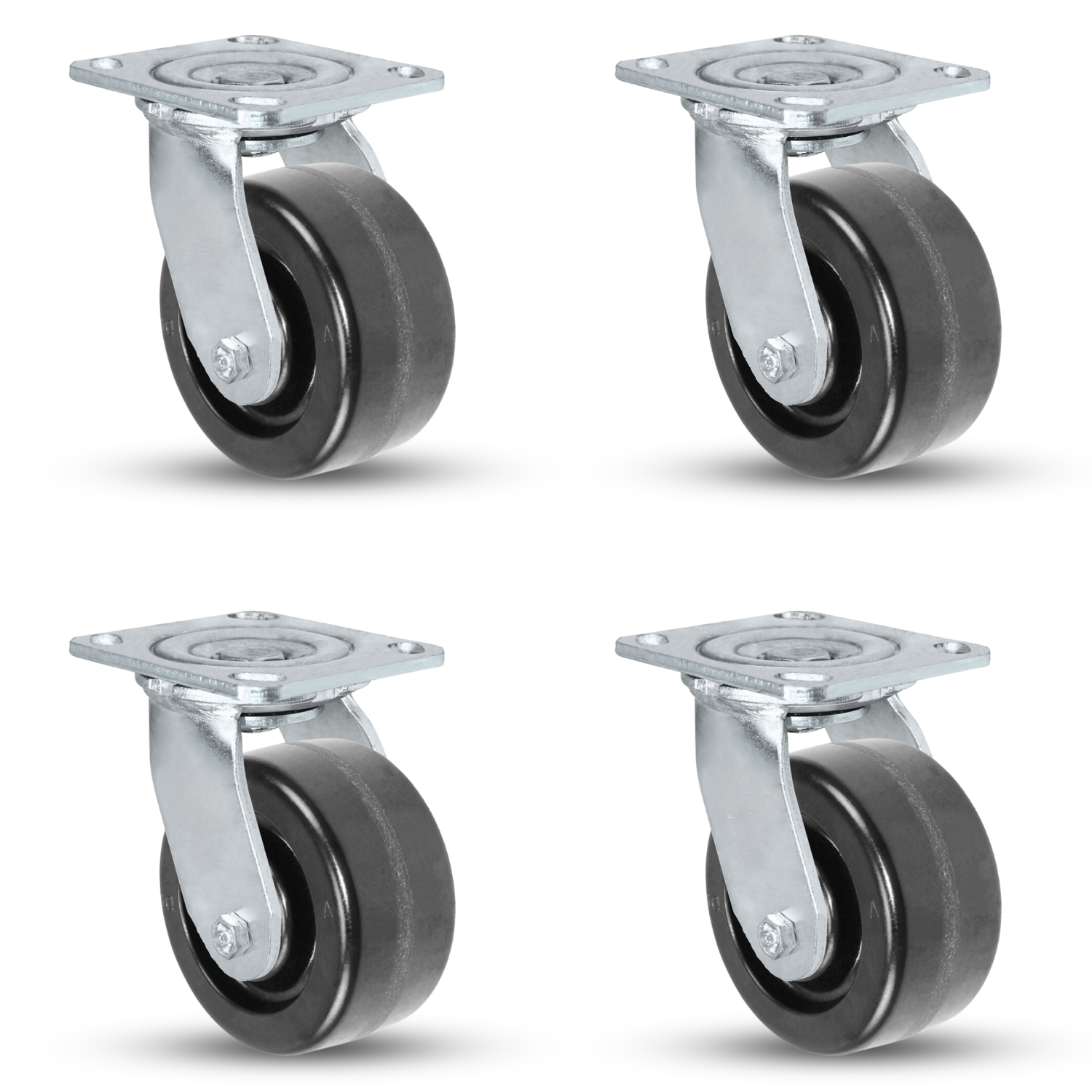

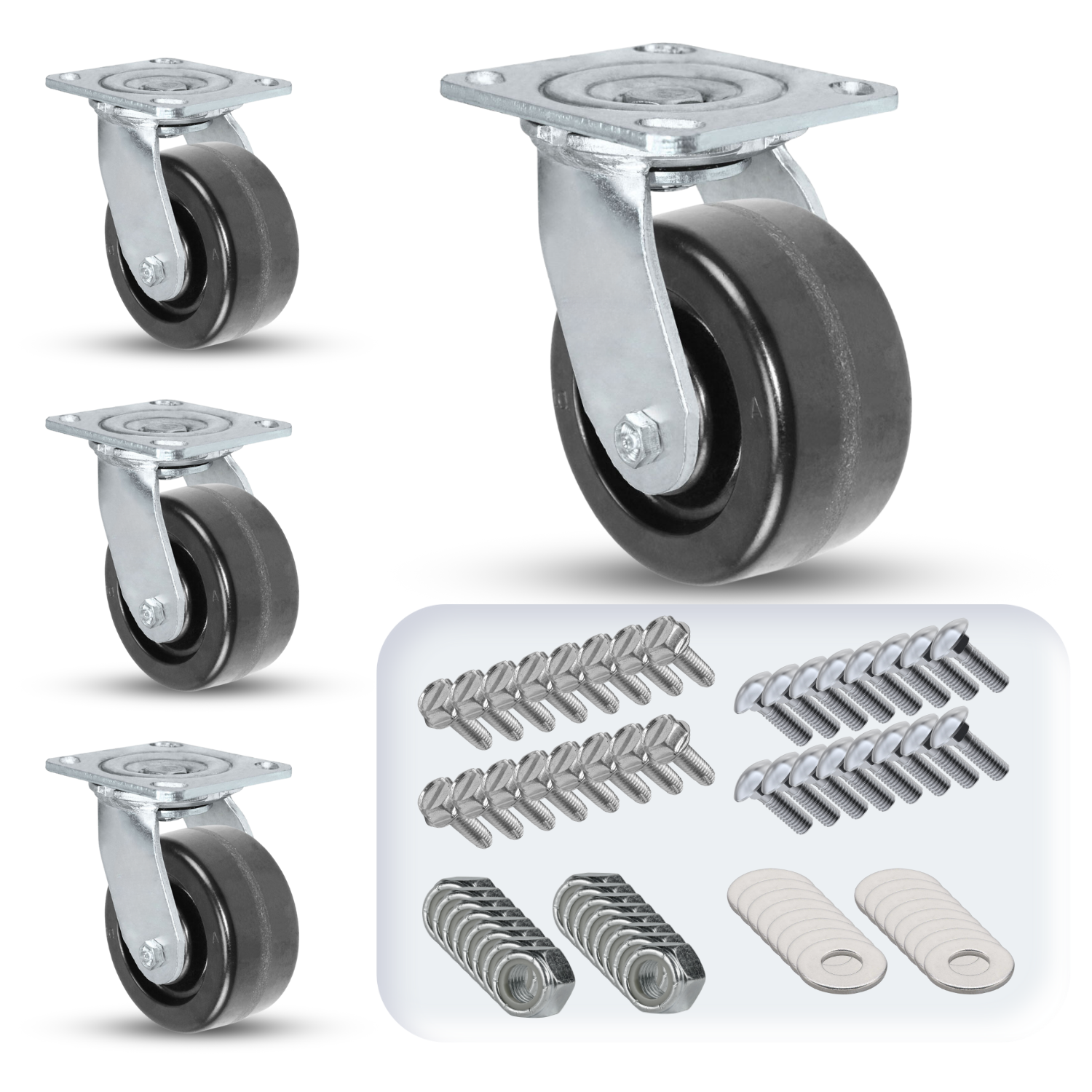

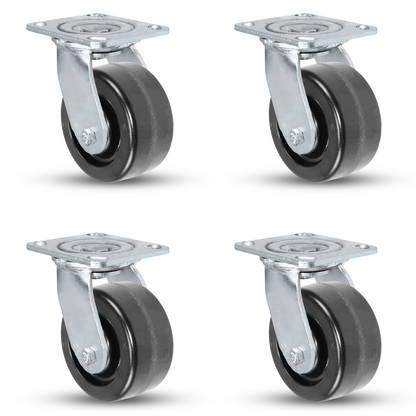

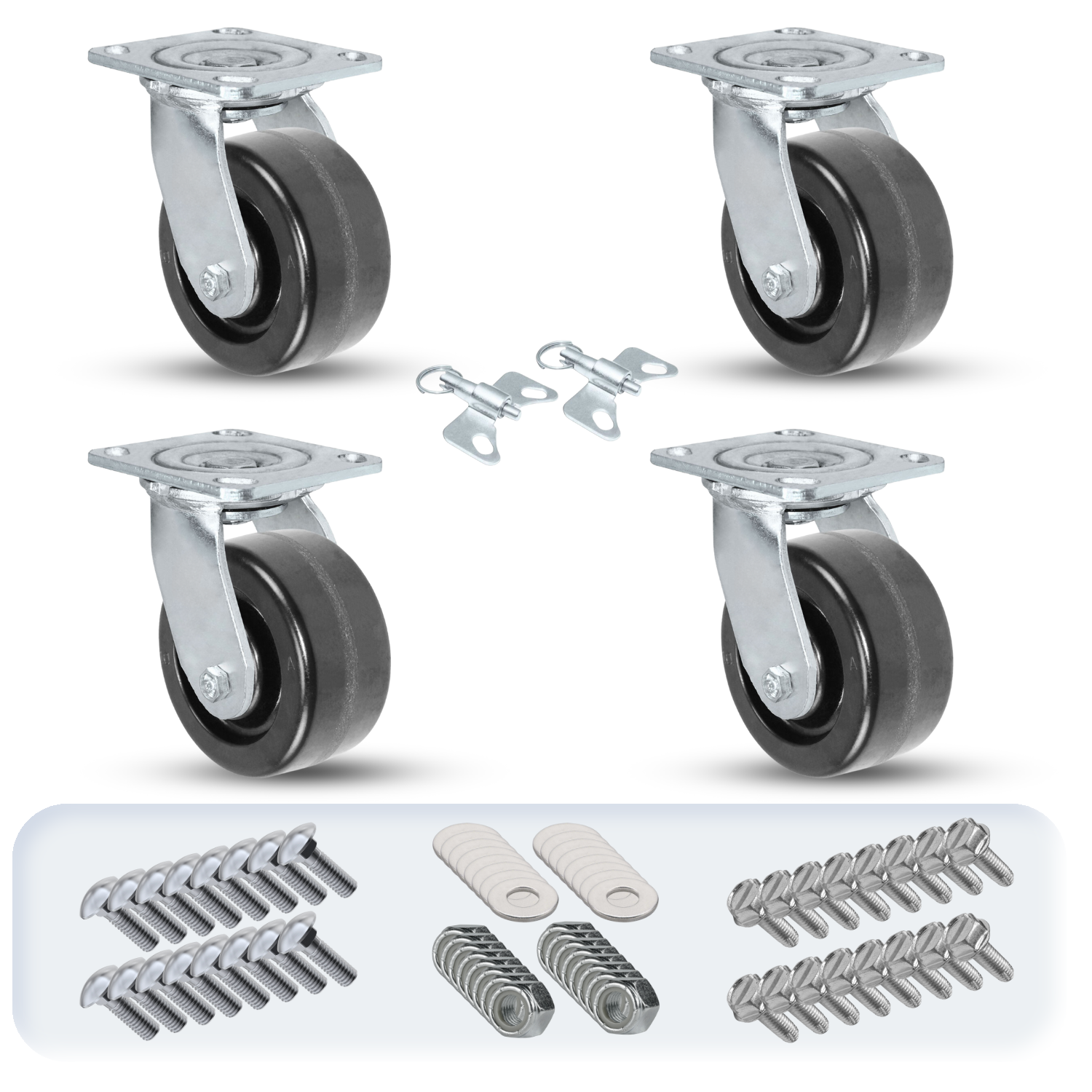

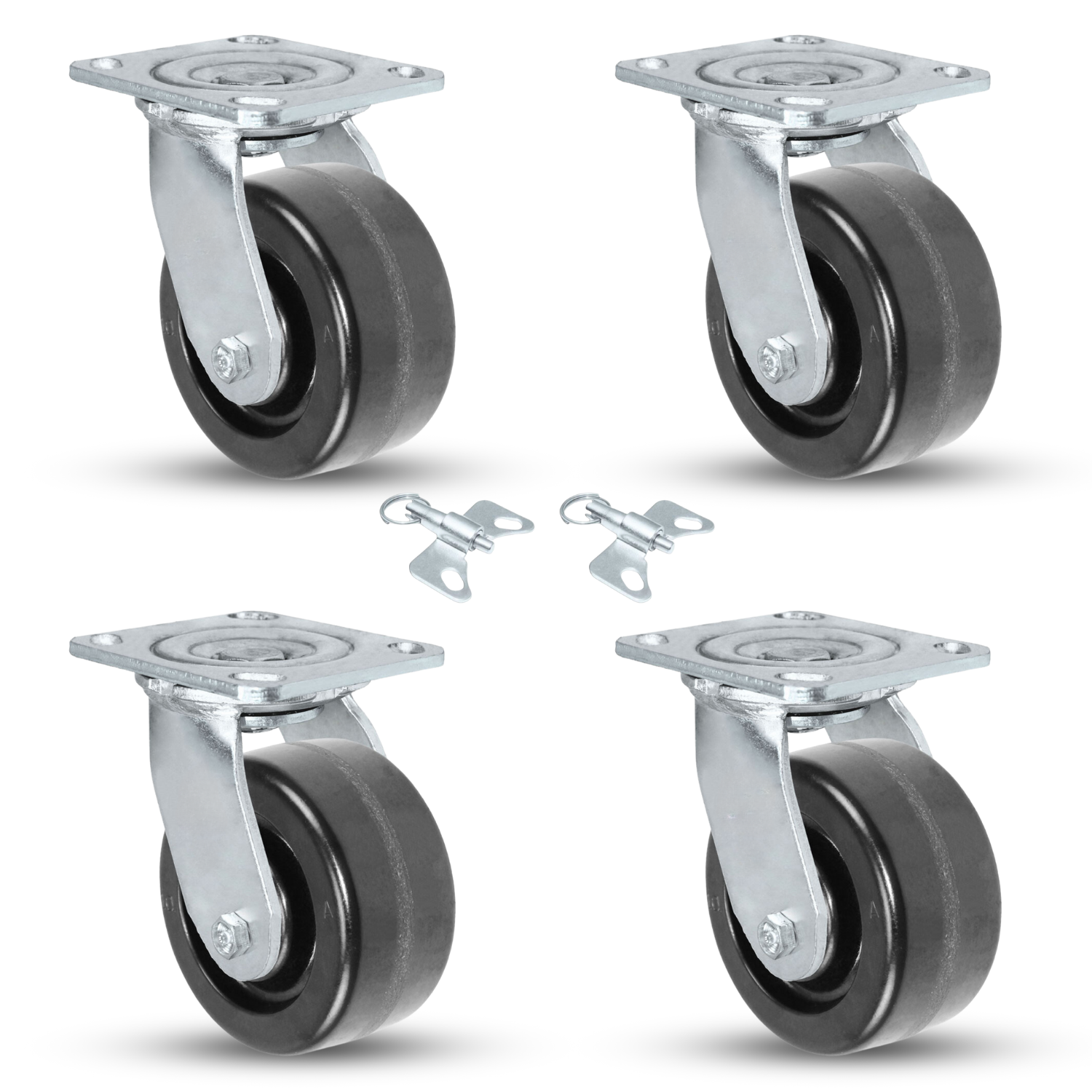

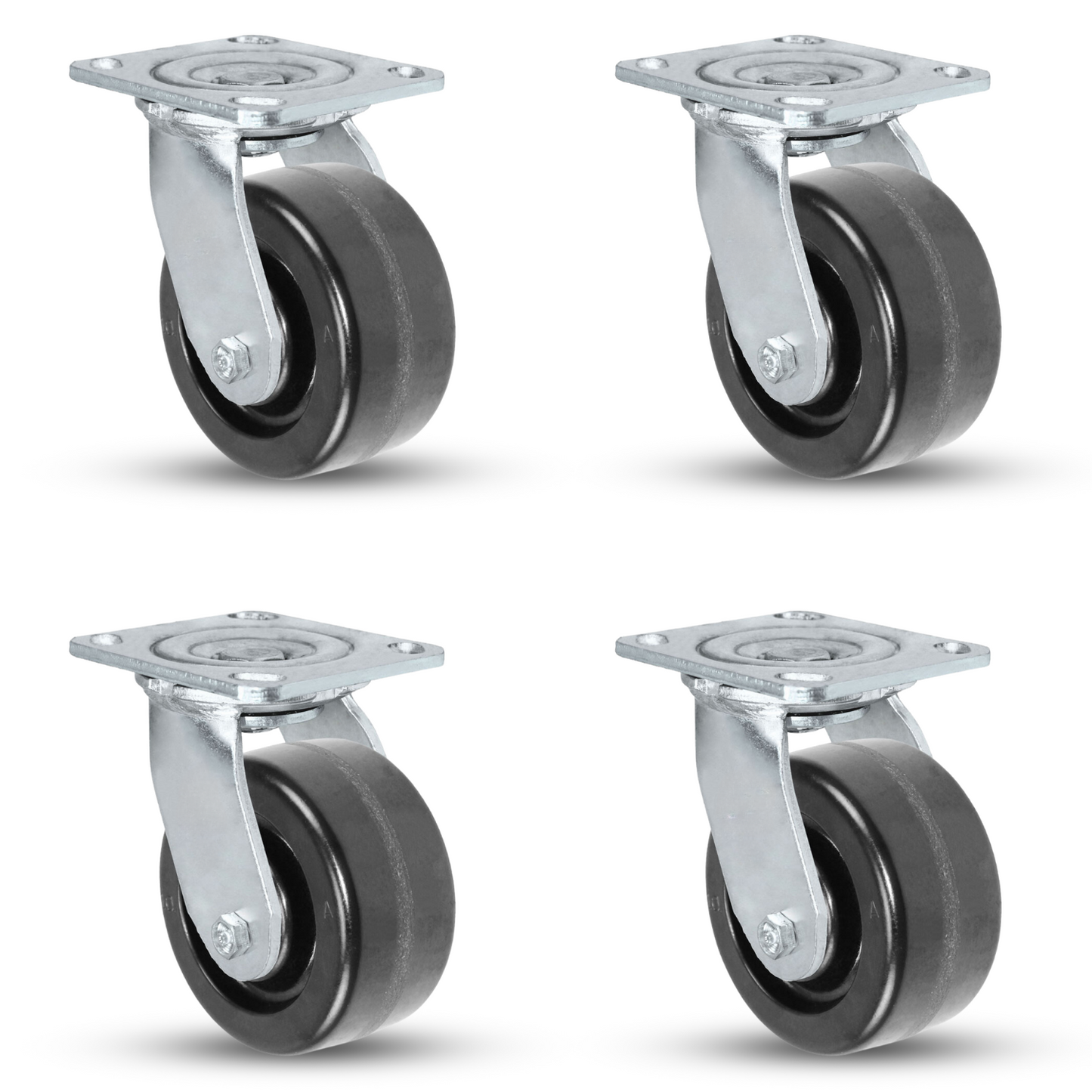

4" x 2" Swivel Caster Set of 4 | Phenolic Wheel | 3,200 Lbs Capacity
Discover the unparalleled efficiency and durability of our Medium Duty 'HD' Series Swivel Casters, a top choice in a wide array of industries. Renowned for their superior quality, functionality, and value, these casters are an essential for medium duty applications. Benefit from our fast delivery and competitive pricing to enhance your operations.
Technical Specifications:
| Wheel Material | Phenolic |
|---|---|
| Wheel Diameter | 4 inches |
| Wheel Tread Width | 2 inches |
| Load Capacity | 800 lbs each / 3,200 lbs per set of 4 |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" (Slotted to 3" x 3") |
| Swivel Radius | 3-1/2 inches (varies with brake options) |
| Wheel Durometer | 90 SHORE D (±/-5) |
| Mounting Bolt Size | 3/8 inch |
| Overall Height | 5-5/8 inches |
| Bearing Type | Roller Bearing or Precision Bearing |
| Wheel Color | Black |
| Temperature Range | -50°F – 250°F |
| Caster Bracket Material | Zinc Plated Steel |
| Grease Zerk | Yes |
| Axle | Zerk Axle |
Key Features:
- OEM Preferred Series: Widely recognized and trusted by Original Equipment Manufacturers.
- NSF Listed: Majority of this series and wheels meet the rigorous standards for NSF certification.
- RoHS Compliant: Adherence to the strictest standards in hazardous substances regulation.
- Double Ball Raceway with 5/8” Kingbolt: Ensures smooth swiveling and enhanced load-bearing.
- Matching Total Lock Casters Available: For added stability and security.
- Grease Fitting in Raceway & Axle: Simplifies maintenance and prolongs the life of the caster.
- Zinc Plated: Offers rust and corrosion resistance for increased durability.
- Phenolic Wheel: Combines the strength of steel with non-marking properties.
- High Resistance to Chemicals: Ideal for harsh environments.
Robust Construction:
- Made with 1/4" thick cold rolled steel, meticulously designed, formed, and welded for maximum mobility and endurance under medium duty conditions.
- Equipped with Double Ball raceways and a 5/8" nut & king-pin for enhanced stability and maneuverability. Optional rivet kingpin and kingpinless versions available.
Versatile Applications:
These casters are a versatile solution for a myriad of medium duty environments, including industrial, warehousing, hospitality, institutional, and food service sectors. Ideal for carts, trucks, dollies, racks, and equipment in various settings.
Product Code: HQ-2040-PL1-PHR-4S
