4" x 2" Phenolic Swivel Caster

4" x 2" Phenolic Swivel Caster

Regular price $16.00 USD
Regular price Sale price $16.00 USD
Sale Sold out
Shipping calculated at checkout.

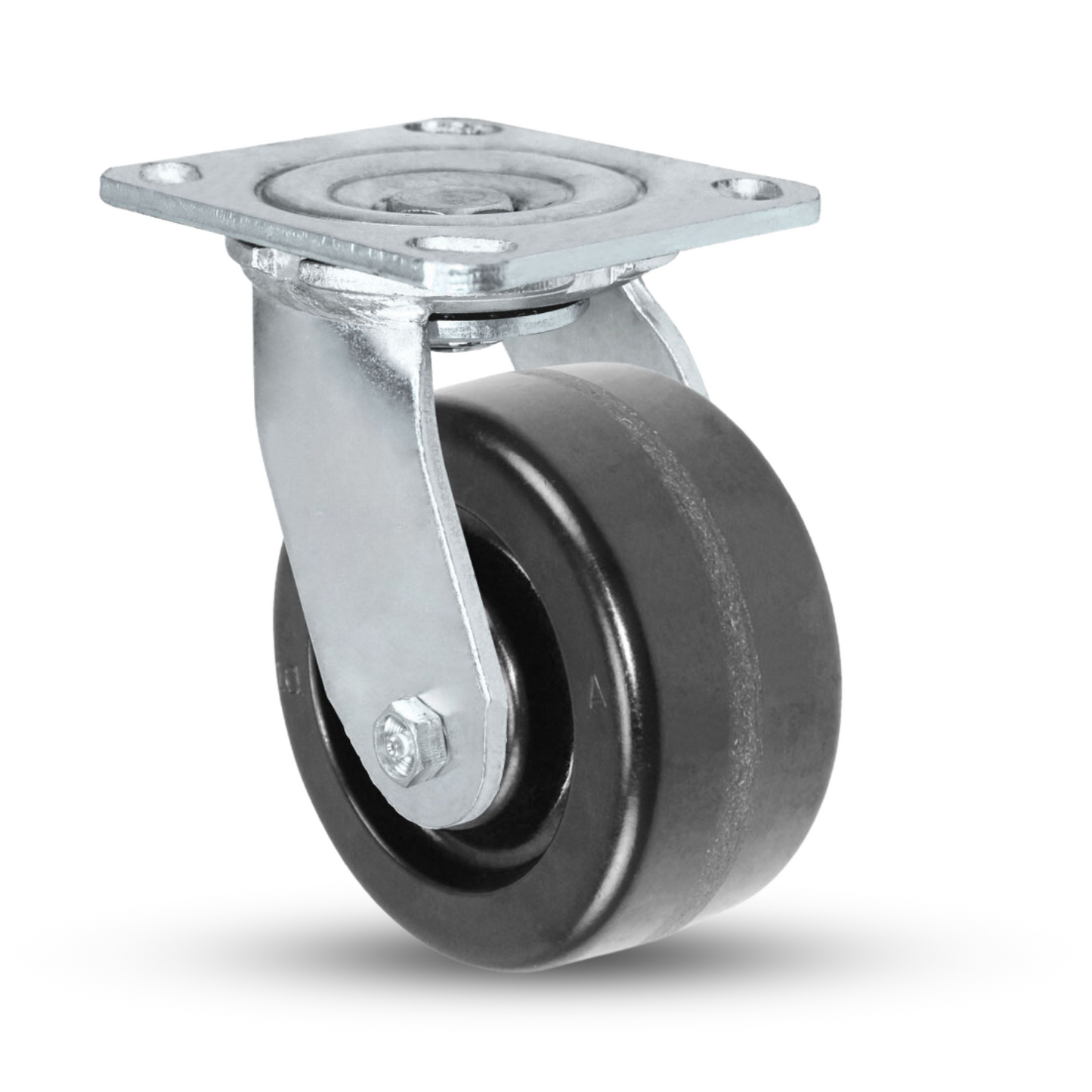

4"x 2" Swivel Caster with Phenolic Wheel - 800 Lbs Capacity

Explore the unmatched utility of our 4-inch x 2-inch swivel caster, a pinnacle in medium-duty mobility solutions. Boasting a substantial 800 lbs load capacity, this caster features a robust 4" x 2" heavy-duty phenolic wheel, designed for reliability and resilience in a wide range of applications. Our '9' Series caster is celebrated across various industries for its superior quality, exceptional functionality, and unparalleled value.

Enjoy rapid delivery and competitive pricing for an effortless procurement experience.

Technical Specifications:

Wheel Material Phenolic
Wheel Diameter 4 inches
Wheel Tread Width 2 inches
Load Capacity 800 lbs each

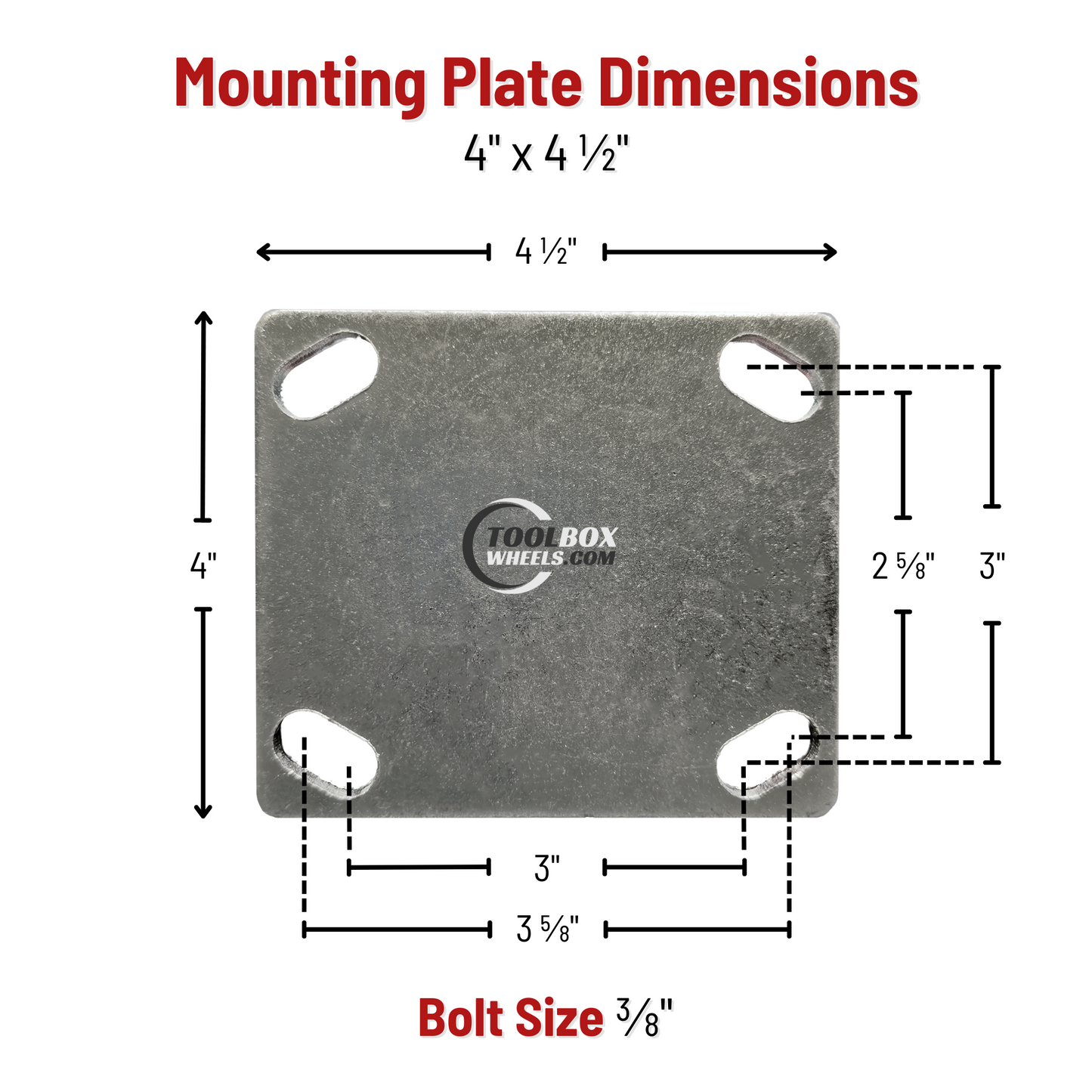

Top Plate Size 4" x 4-1/2"
Bolt Hole Spacing 2-5/8" x 3-5/8" (Slotted to 3" x 3")

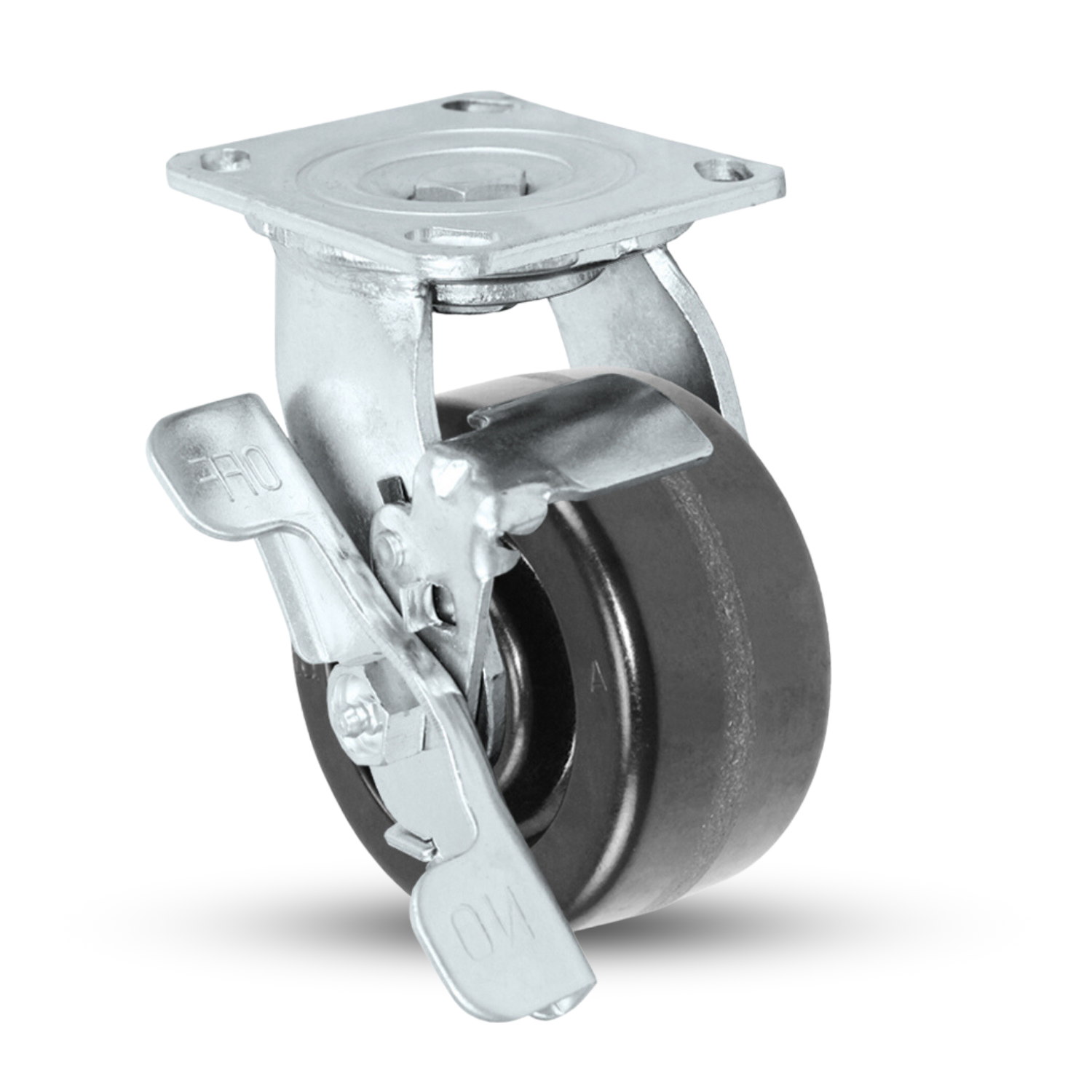

Swivel Radius 4-9/16 inches (varies with brake options)
Wheel Durometer 90 SHORE D (±5)
Mounting Bolt Size 3/8 inch
Overall Height 5-5/8 inches
Bearing Type Roller Bearing (other options available)
Wheel Color Black
Temperature Range -50°F – 250°F
Caster Bracket Material Zinc Plated
Grease Zerk in Raceway Yes
Axle Zerk Axle

Key Features:

  • Durable Construction: Designed, formed, and welded for optimal mobility and to withstand medium-duty applications.
  • Versatile Usage: Ideal for carts, trucks, dollies, racks, and equipment in industries like warehousing, hospitality, institutional, food service, and retail.
  • Swivel Functionality: Enhanced maneuverability with smooth swivel action.
  • Multiple Kingpin Options: Standard, rivet, and kingpinless versions to meet diverse needs.

Additional Features:

  • OEM Preferred Series: Highly favored in original equipment manufacturing.
  • NSF Listed: Majority of the series and wheels meet NSF standards.
  • RoHS Compliant: Adherence to strict RoHS guidelines.
  • Double Ball Raceway: With 5/8” kingbolt for enhanced strength and maneuverability.

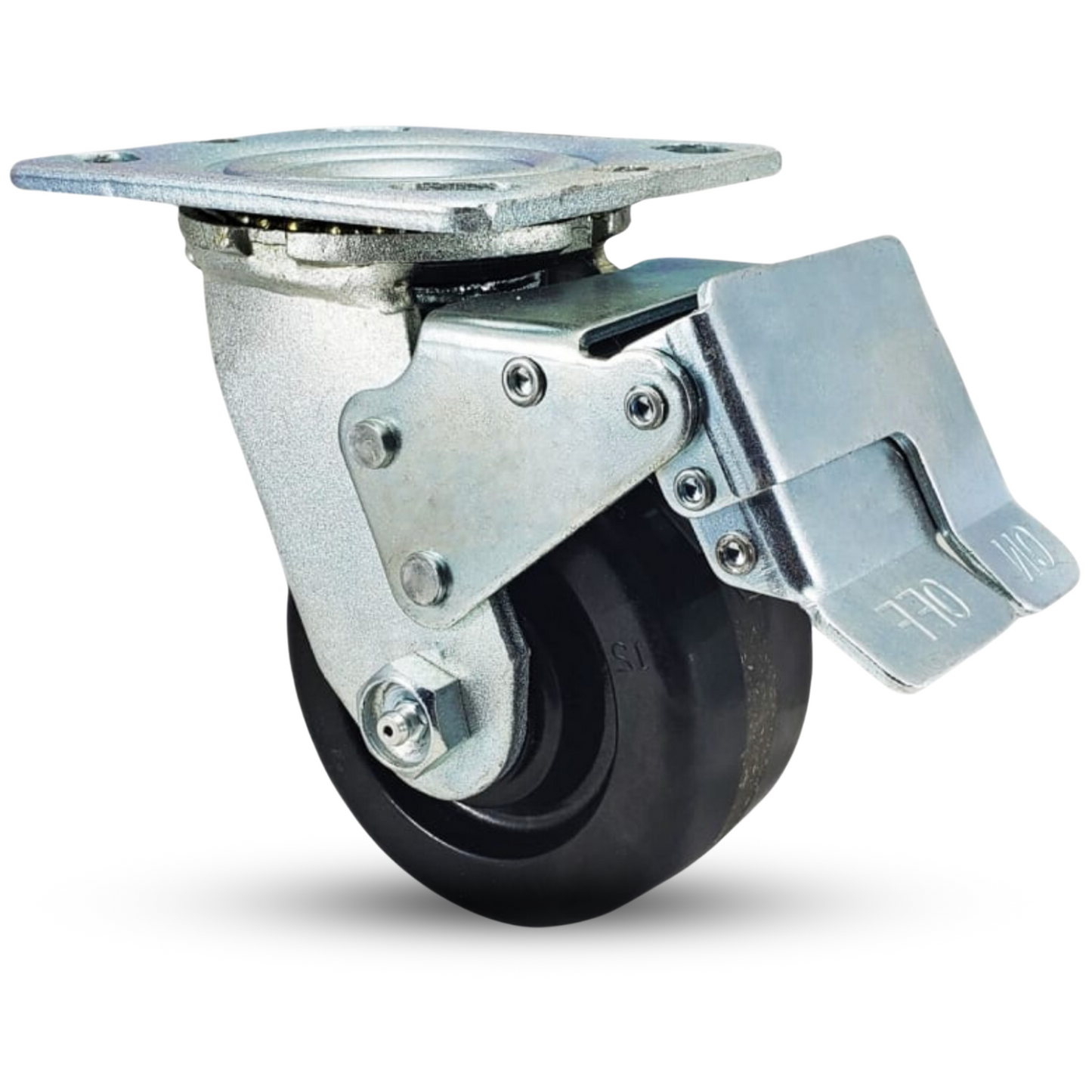

  • Total Lock Casters: Matching total lock casters available for added stability.
  • Easy Maintenance: Grease fitting in raceway and axle.
  • Zinc Plated: Rust and corrosion-resistant finish.
  • Phenolic Wheel: Combines the strength of steel with non-marking and chemical resistant properties.

Industry Applications:

  • Industrial
  • Warehousing
  • Hospitality
  • Institutional
  • Food Service
  • Food Processing
  • Retail Display

Product Code: HQ2040S-PL1-PHR
