5" x 2" Phenolic Caster Set | 2 Swivel Brakes & 2 Swivels
5" x 2" Phenolic Caster Set | 2 Swivel Brakes & 2 Swivels
Regular price
$117.99 USD
Regular price
Sale price
$117.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

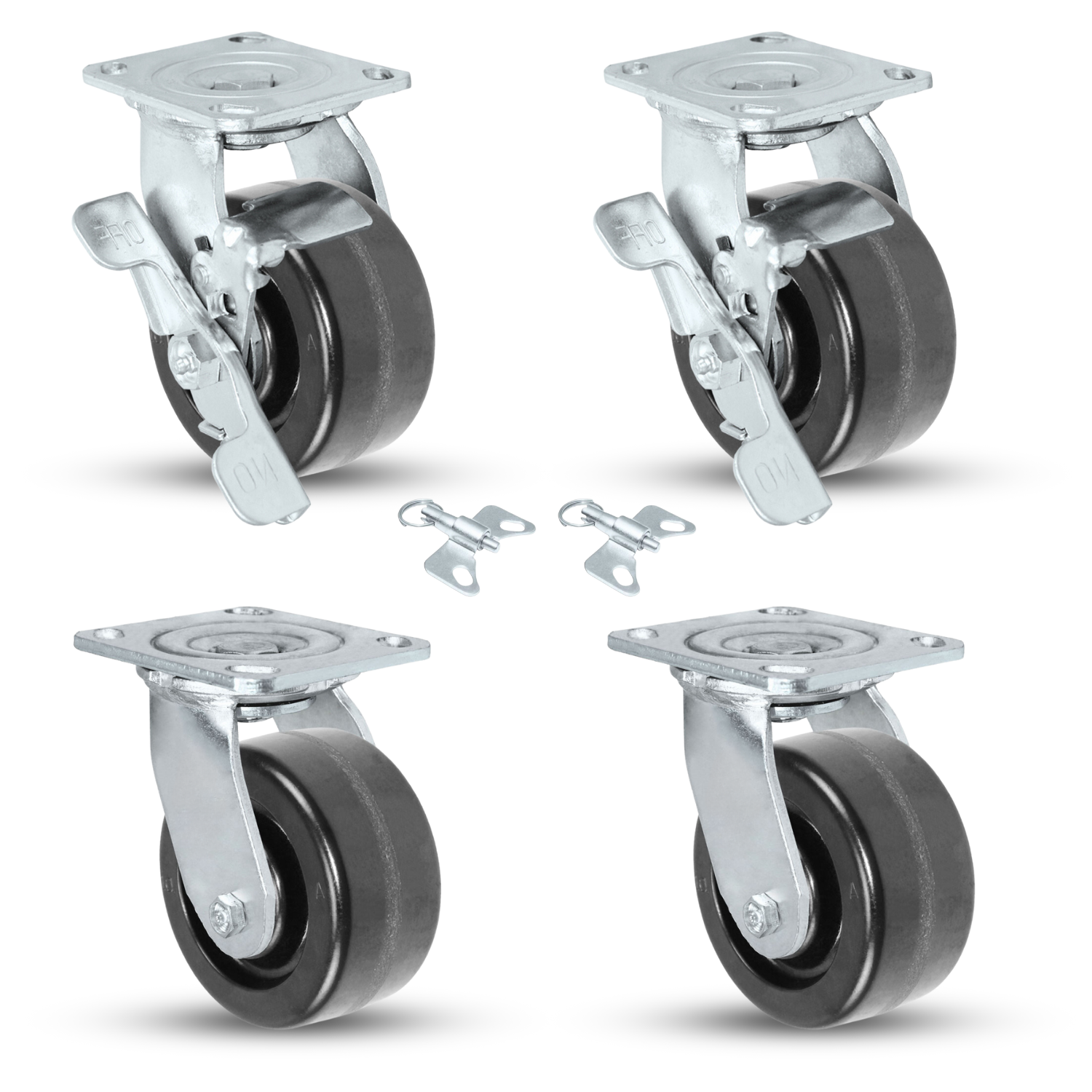

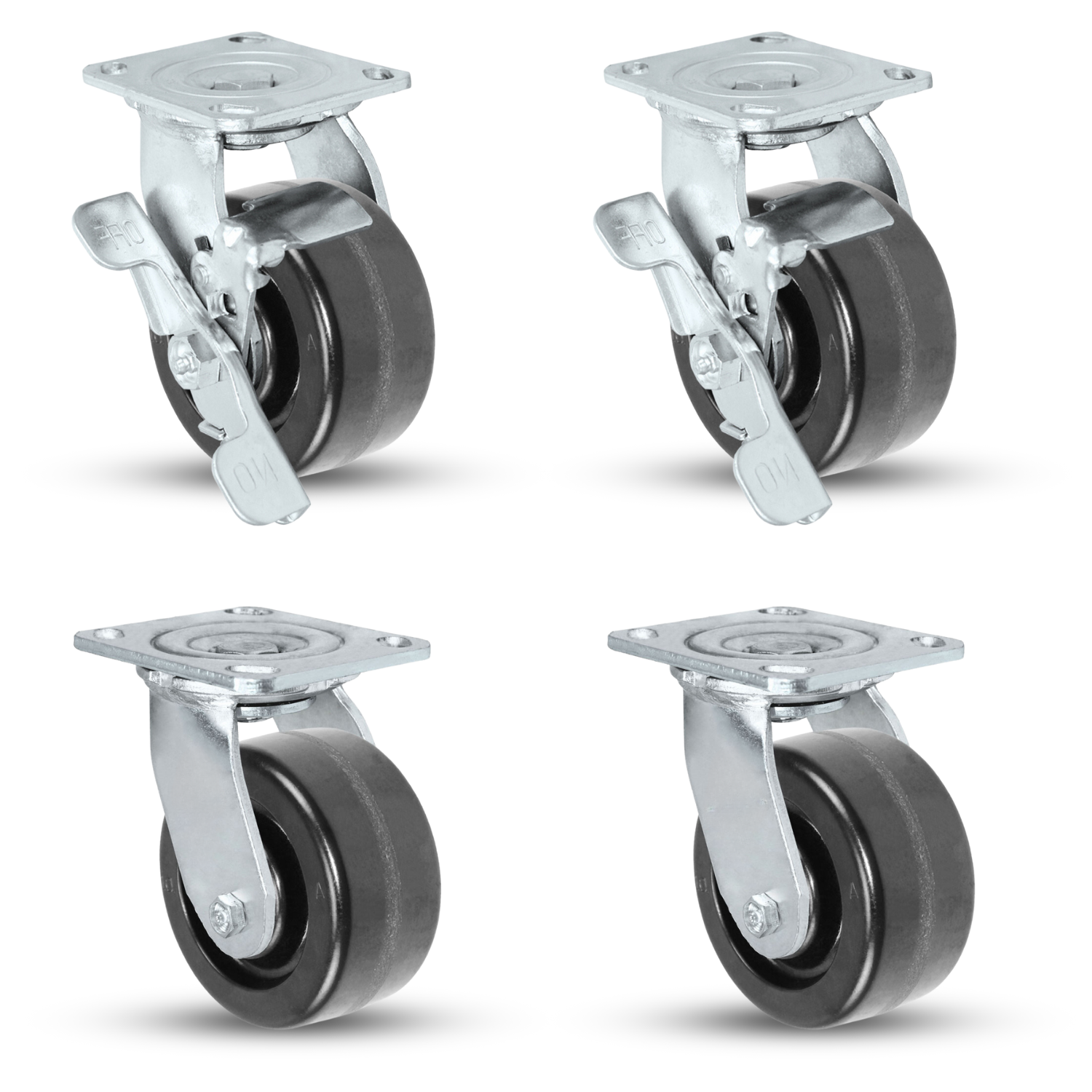

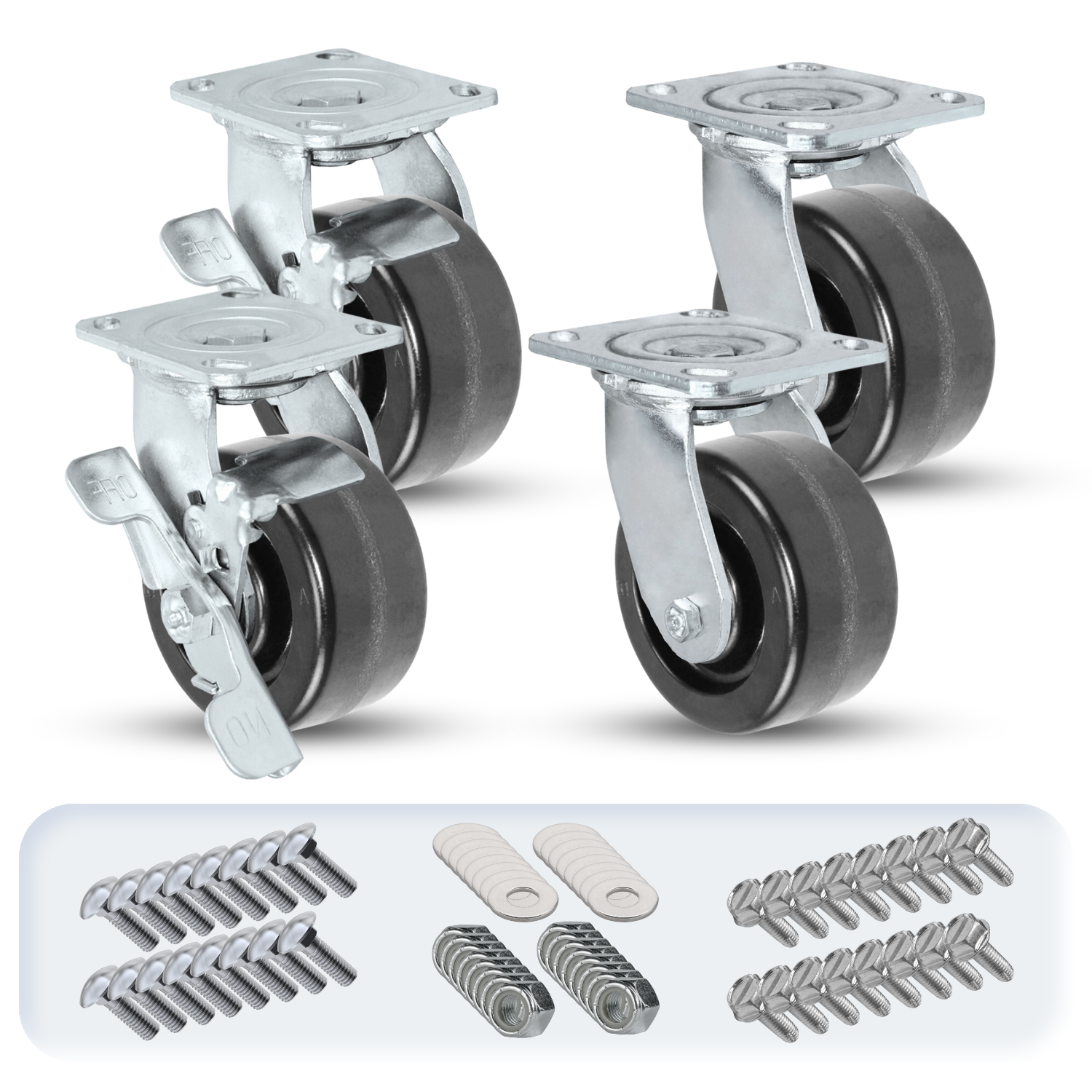

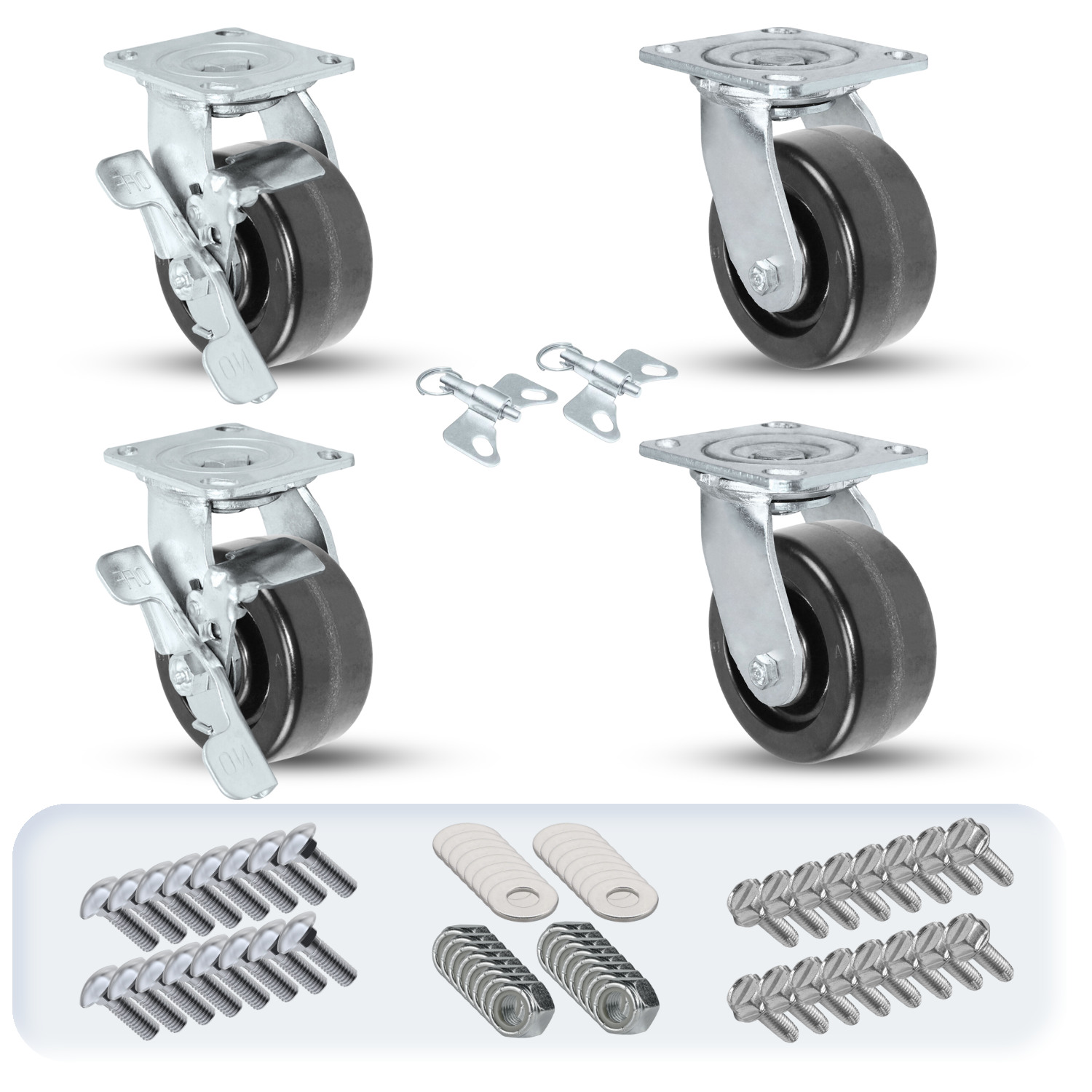

5" x 2" Swivel Caster Set with Brakes - Phenolic Wheel - 3,200 Lbs Capacity
Experience unparalleled performance with our Medium Duty 'HD' Series, a top choice across various industries for its exceptional quality, functionality, and value. This set includes 2 swivel casters with brakes and 2 standard swivel casters, each outfitted with a robust phenolic wheel. Offering a combined load capacity of 3,200 lbs, these casters are perfectly suited for a range of medium-duty applications. Benefit from our commitment to fast delivery and competitive pricing.
Technical Specifications:
| Wheel Material | Phenolic |
|---|---|
| Wheel Diameter | 5 inches |
| Wheel Tread Width | 2 inches |
| Load Capacity | 800 lbs each | 3,200 lbs per set of 4 |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" (Slotted to 3" x 3") |
| Swivel Radius | 4-1/4 inches (Increases with certain brake options) |
| Wheel Durometer | 90 SHORE D (±/-5) |
| Mounting Bolt Size | 3/8 inch |
| Overall Height | 6-1/2 inches |
| Bearing Type | Roller Bearing or Precision Bearing |
| Wheel Color | Black |
| Temperature Range | -50°F – 250°F |
| Caster Bracket Material | Zinc Plated Steel |
| Grease Zerk | Yes |
| Axle | Zerk Axle |
Product Applications:
- Industrial Equipment: Ideal for heavy machinery and equipment in industrial settings.
- Warehousing: Perfect for use in moving large items in warehouses and storage facilities.
- Hospitality: Enhance maneuverability of service carts in hotels and event venues.
- Institutional: Suitable for schools, hospitals, and other institutions requiring reliable mobility solutions.
- Food Service & Processing: Essential for carts and equipment in kitchens, restaurants, and food processing areas.
- Retail Display: Excellent for display units and racks in retail environments.
- General Utility: Versatile for use in workshops, garages, and other general applications.
Additional Features:
- OEM Preferred Series: Highly favored in various industries for its quality and reliability.
- NSF Listed: Majority of this series and wheels meet rigorous NSF standards.
- RoHS Compliant: Adheres to stringent environmental and safety regulations.
- Double Ball Raceway with 5/8” Kingbolt: Offers enhanced stability and smoother swivel action.
- Total Lock Casters Available: For complete immobilization when needed.
- Grease Fitting in Raceway & Axle: Simplifies maintenance and extends the life of the casters.
- Zinc Plated: Provides rust and corrosion resistance, enhancing durability.
- Phenolic Wheel: As strong as steel, ideal for heavy-duty applications.
- Non-Marking Wheel: Protects floors from scuffs and marks.
- Chemical Resistance: Suitable for environments where chemical resistance is crucial.
