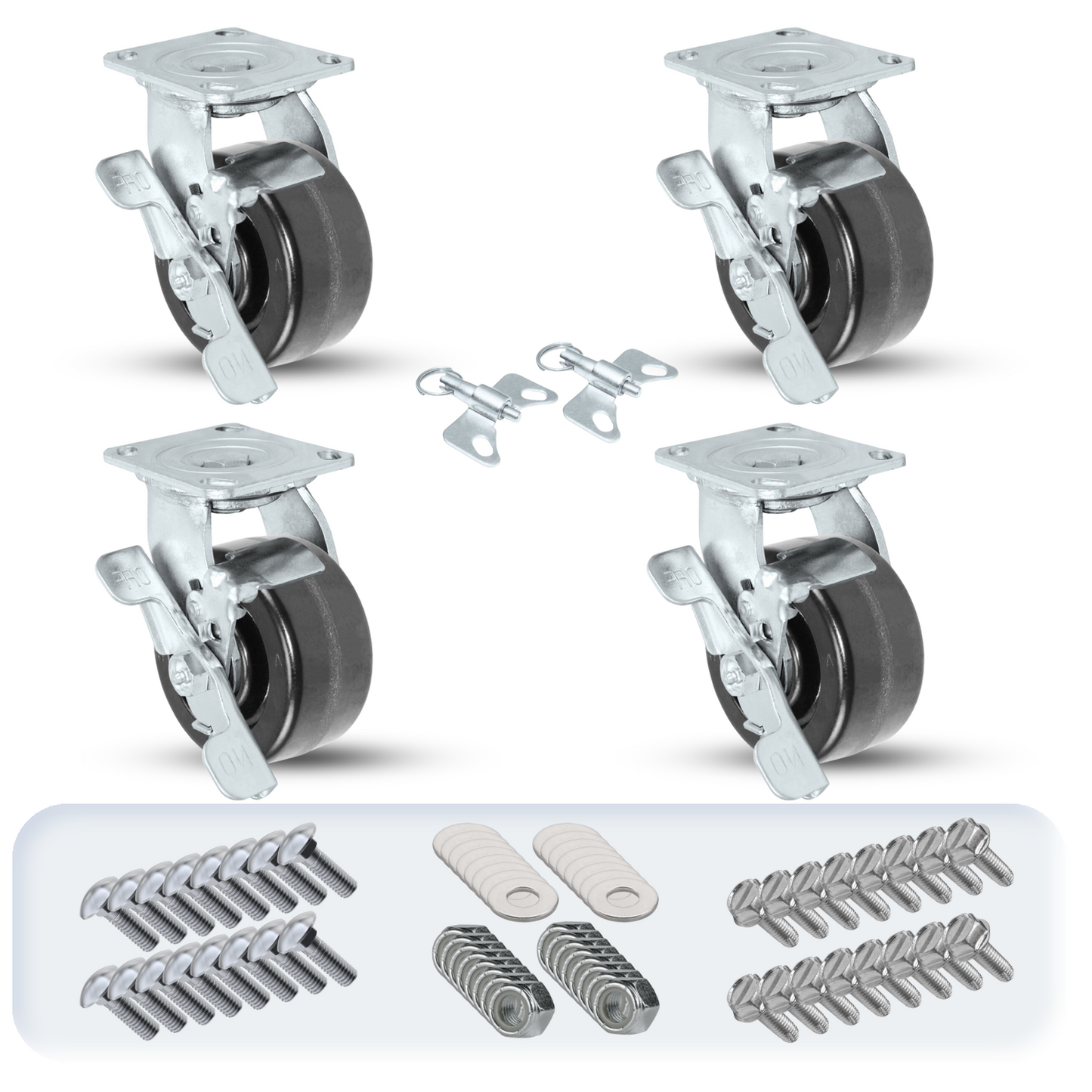

5" x 2" Phenolic Caster Set | 4 Swivels with Brakes

5" x 2" Phenolic Caster Set | 4 Swivels with Brakes

Regular price $132.85 USD
Regular price Sale price $132.85 USD
Sale Sold out
Shipping calculated at checkout.

5" x 2" Swivel Casters with Brakes - Set of 4 - Phenolic Wheel - 3,200 Lbs Capacity

Introducing our Medium Duty 'HD' Series 5-inch by 2-inch Swivel Casters with Brakes, a top choice in a wide array of industries for their outstanding quality, functionality, and durability. These casters are designed to excel in medium-duty applications, offering a remarkable 3,200 lbs total capacity per set of four. Ideal for quick, reliable mobility solutions, we ensure fast delivery and competitive pricing.

Technical Specifications:

Wheel Material Phenolic
Wheel Diameter 5 inches
Wheel Tread Width 2 inches
Load Capacity 800 lbs each | 3,200 lbs per set of 4
Top Plate Size 4" x 4-1/2"
Bolt Hole Spacing 2-5/8" x 3-5/8" (Slotted to 3" x 3")
Swivel Radius 4-1/4 inches (Increases with certain brake options)
Wheel Durometer 90 SHORE D (±/-5)
Mounting Bolt Size 3/8 inch
Overall Height 6-1/2 inches
Bearing Type Roller Bearing or Precision Bearing
Wheel Color Black
Temperature Range -50°F – 250°F
Caster Bracket Material Zinc Plated Steel
Grease Zerk Yes
Axle Zerk Axle

Key Features:

  • High Load Capacity: Each caster can support up to 800 lbs, making the entire set ideal for loads up to 3,200 lbs.
  • Durable Phenolic Wheels: Known for their strength and floor protection, these wheels ensure smooth operation across various surfaces.
  • Enhanced Mobility: Swivel design with brakes provides superior maneuverability and secure positioning.
  • Versatile Application: Perfect for use with carts, trucks, dollies, racks, and equipment in industries like warehousing, hospitality, food service, and more.
  • Robust Construction: Made from 1/4" thick cold rolled steel, designed to withstand the demands of medium-duty applications.

Additional Features:

  • OEM Preferred Series: Widely recognized and trusted for exceptional performance.
  • NSF Listed: Majority of this series and wheels comply with rigorous NSF standards.
  • RoHS Compliant: Adheres to strict environmental and safety standards.
  • Double Ball Raceway with 5/8” Kingbolt: Ensures smooth swiveling and enhanced durability.
  • Matching Total Lock Casters Available: For complete mobility control and secure locking.
  • Grease Fitting in Raceway & Axle: Simplifies maintenance and extends caster life.
  • Zinc Plated: Offers excellent rust and corrosion resistance.
  • Phenolic Wheel - Strong as Steel: Delivers robust performance and longevity.
  • Non-Marking Wheel: Ensures no floor damage or marks during use.
  • Chemical Resistance: Ideal for environments with exposure to various chemicals.

Product Code: HQ-2050-PL1-PHR-4SB
