6" x 2" Phenolic Caster Set | 2 Swivel Brakes & 2 Rigid
6" x 2" Phenolic Caster Set | 2 Swivel Brakes & 2 Rigid
Regular price
$116.00 USD
Regular price
Sale price
$116.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

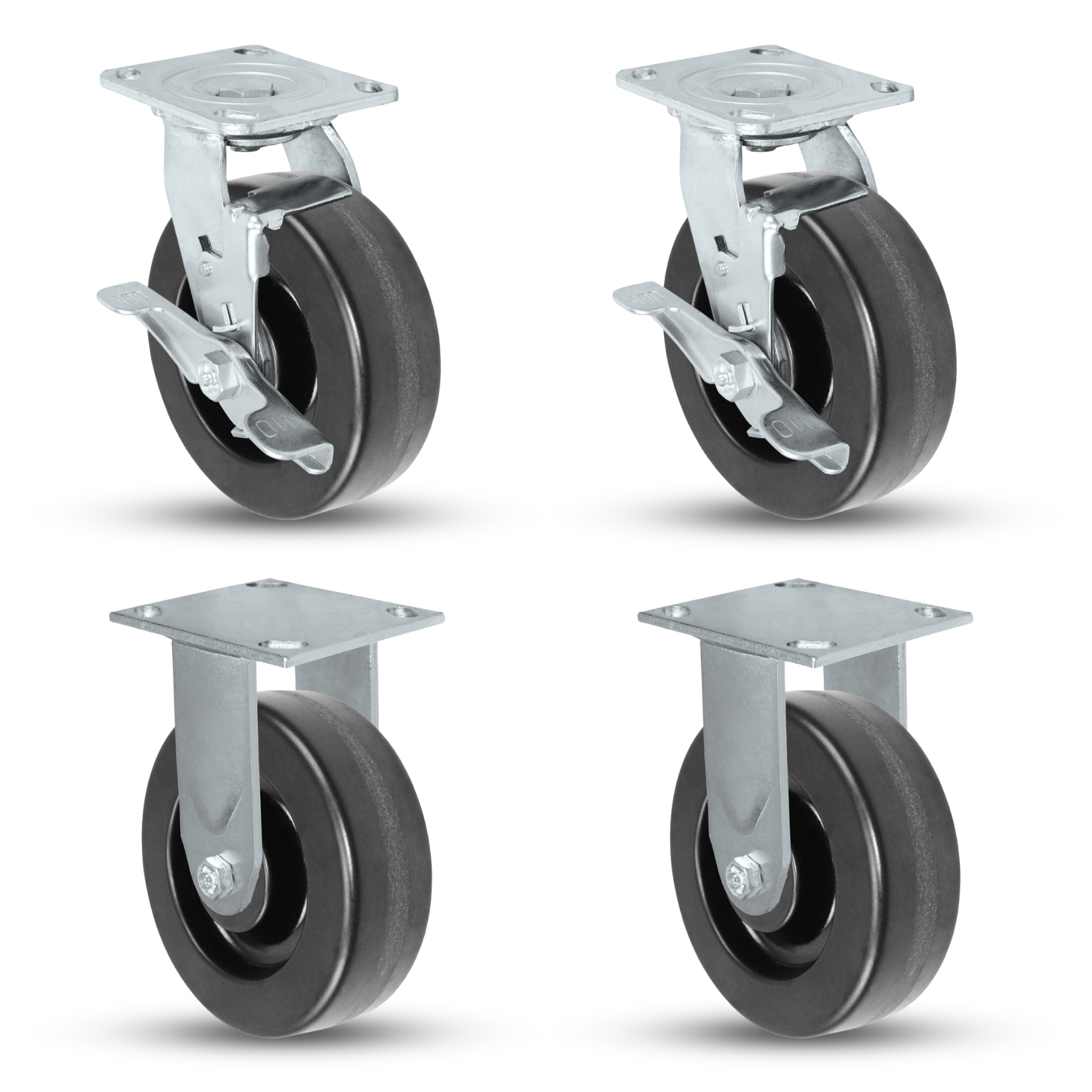

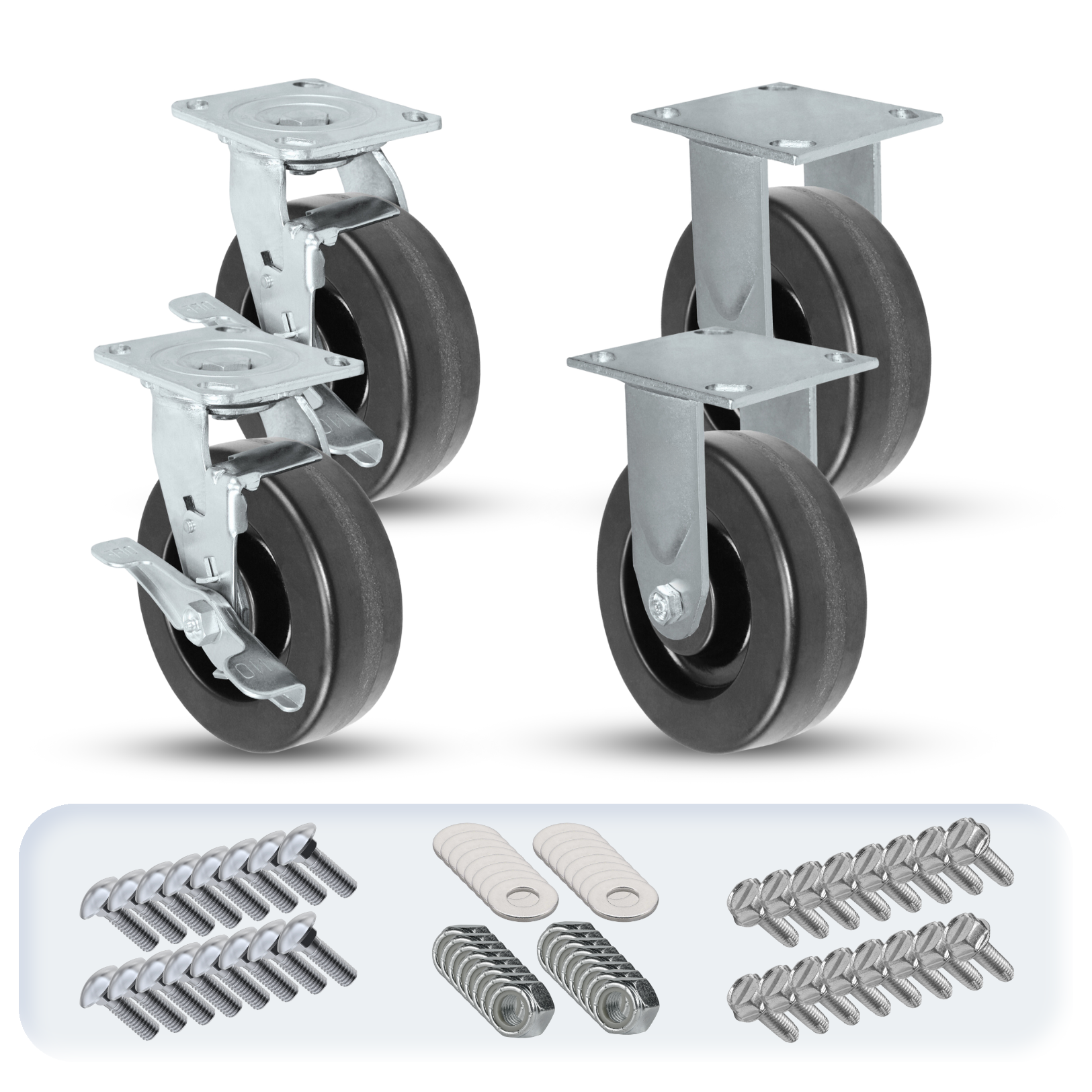

6" x 2" Swivel Caster with Brakes & Rigid Set of 4 - Phenolic Wheel - 3,600 Lbs Capacity
Enhance the mobility and efficiency of your equipment with our 6-inch by 2-inch Swivel Caster Set with Brakes and Rigid Wheels. Part of our renowned Medium Duty 'HD' Series, this set of four casters is engineered for outstanding performance in a wide range of industries. With a remarkable 3,600 lbs total capacity, these casters offer a blend of quality, functionality, and value, all while ensuring prompt delivery at competitive prices.
Technical Specifications:
| Wheel Material | Phenolic |
|---|---|
| Wheel Diameter | 6 inches |
| Wheel Tread Width | 2 inches |
| Load Capacity | 900 lbs each | 3,600 lbs per set of 4 |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" (Slotted to 3" x 3") |
| Swivel Radius | 4-7/8 inches (Increases with certain brake options) |
| Wheel Durometer | 90 SHORE D (±/-5) |
| Mounting Bolt Size | 3/8 inch |
| Overall Height | 7-1/2 inches |
| Bearing Type | Roller Bearing or Precision Bearing |
| Wheel Color | Black |
| Temperature Range | -50°F – 250°F |
| Caster Bracket Material | Zinc Plated Steel |
| Grease Zerk | Yes |
| Axle | Zerk Axle |
Key Features:
- OEM Preferred Series: Trusted for exceptional performance in various industries.
- NSF Listed: Majority of this series and wheels comply with NSF standards.
- RoHS Compliant: Adherence to environmental and health safety standards.
- Double Ball Raceway with 5/8” Kingbolt: Ensures smooth operation and longevity.
- Matching Total Lock Casters Available: For enhanced stability and stationary use.
- Grease Fitting in Raceway & Axle: Simplifies maintenance and extends caster life.
- Zinc Plated: Offers rust and corrosion resistance for durability.
- Phenolic Wheel - Strong as Steel: High-strength wheel material for demanding environments.
- Non-Marking Wheel: Protects floors from damage and marks.
- Chemical Resistance: Suitable for environments where chemical exposure is possible.
Product Overview:
- Versatile Functionality: Ideal for carts, trucks, dollies, racks, and equipment in industries like warehousing, hospitality, institutional, food service, and retail display.
- Durable Construction: Made from 1/4" thick cold-rolled steel, designed to withstand the demands of medium-duty applications.
- Advanced Mobility: Equipped with double ball raceways and a 5/8" nut & king-pin for smooth operation, plus options for rivet kingpin or kingpinless versions.
