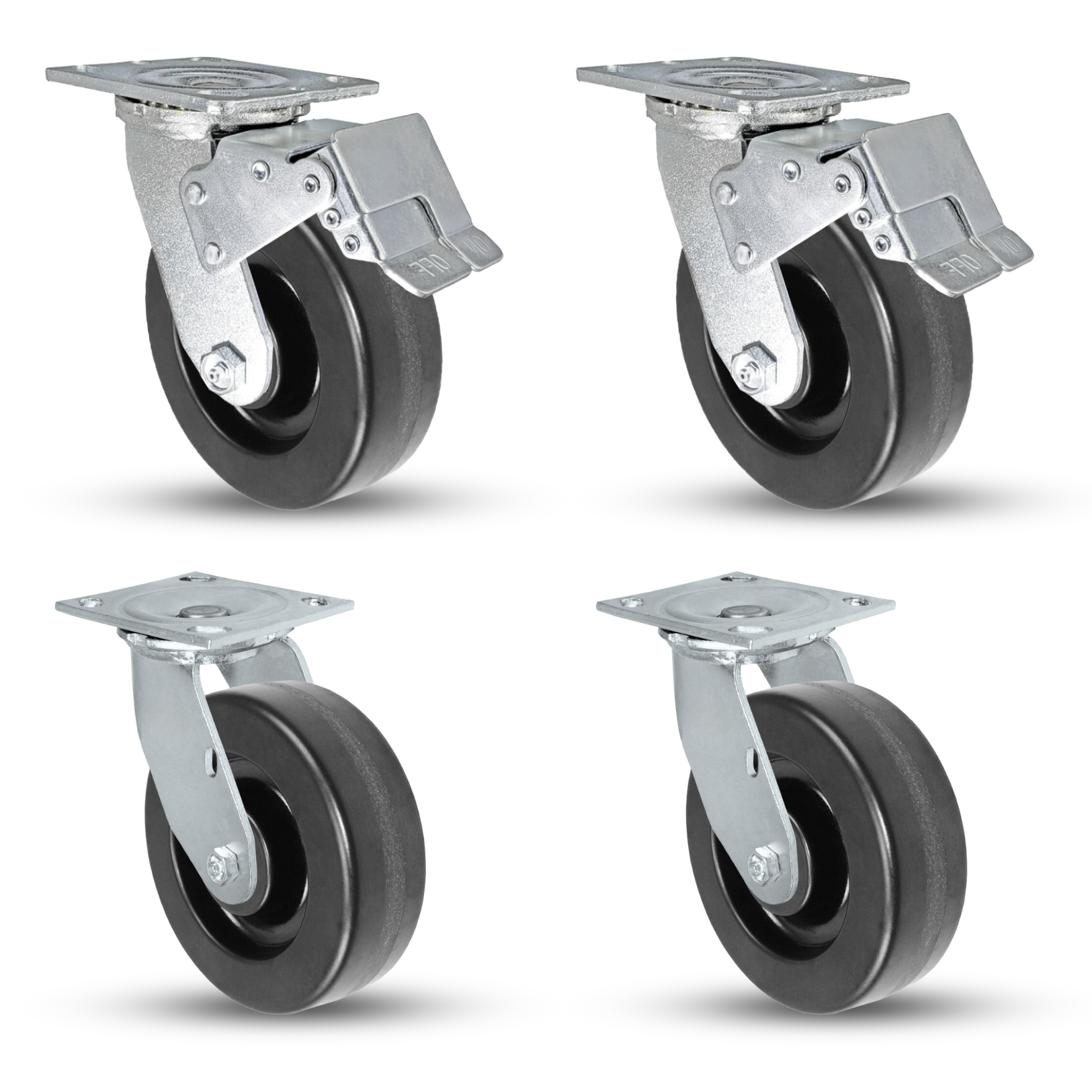

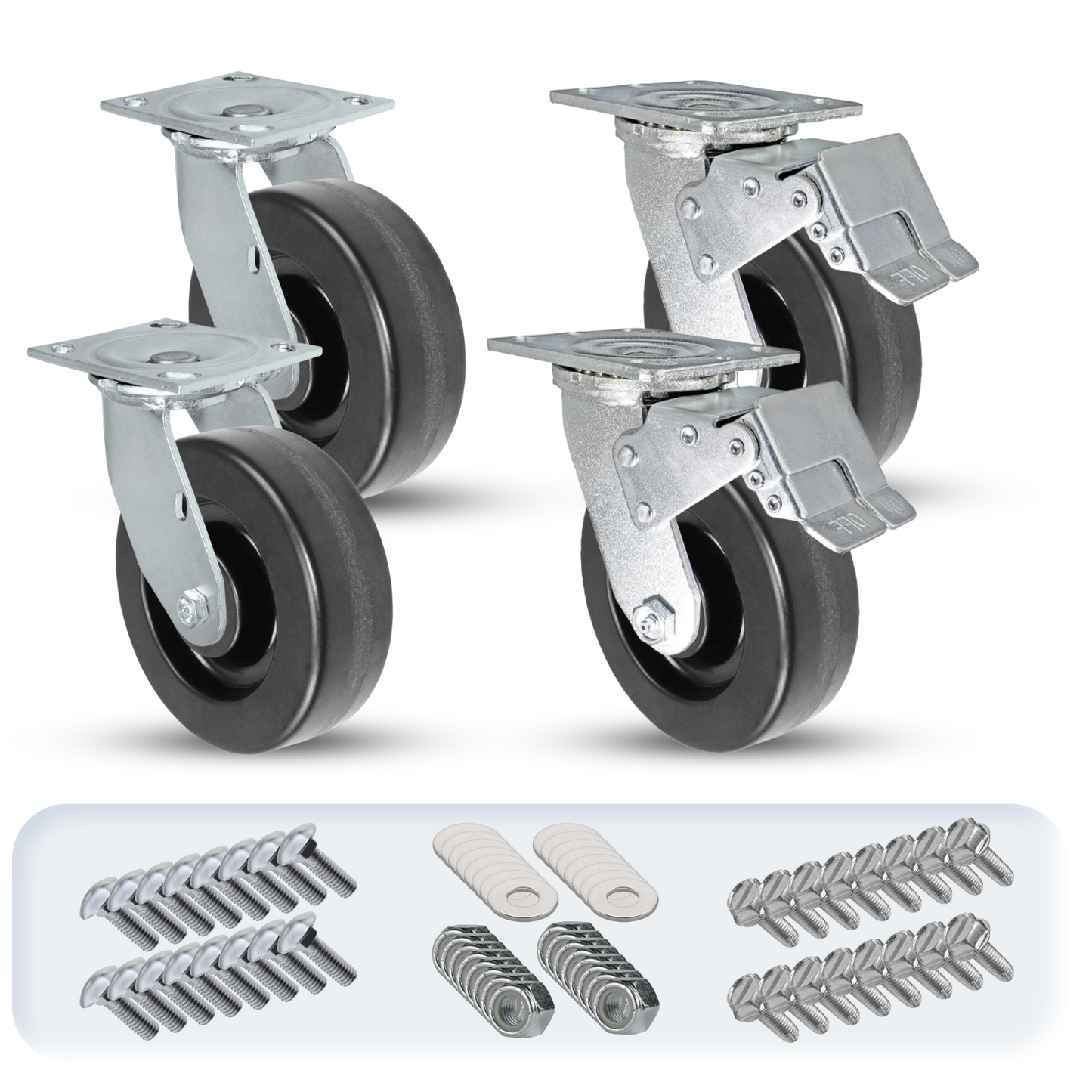

6" x 2" Phenolic Caster Set | 2 Total Lock & 2 Swivel

6" x 2" Phenolic Caster Set | 2 Total Lock & 2 Swivel

Regular price $115.99 USD
Regular price Sale price $115.99 USD
Sale Sold out
Shipping calculated at checkout.

6" x 2" Caster Set of 4 - 2 Total Lock & 2 Swivels - Phenolic Wheel - 3,600 Lbs Capacity

Enhance your equipment's mobility with our 6-inch by 2-inch caster set, a top choice in our Medium Duty 'HD' Series. Known for its exceptional quality and durability, this set includes two total lock casters and two  standard swivels, all boasting a substantial 3,600 lbs total capacity. Ideal for a variety of medium-duty applications, they offer both functionality and value, complemented by fast delivery and competitive pricing.

Technical Specifications:

Wheel Material Phenolic
Wheel Diameter 6 inches
Wheel Tread Width 2 inches
Load Capacity 900 lbs each | 3,600 lbs per set of 4
Top Plate Size 4" x 4-1/2"
Bolt Hole Spacing 2-5/8" x 3-5/8" (Slotted to 3" x 3")
Swivel Radius 4-7/8 inches (Increases with certain brake options)
Wheel Durometer 90 SHORE D (±/-5)
Mounting Bolt Size 3/8 inch
Overall Height 7-1/2 inches
Bearing Type Roller Bearing or Precision Bearing
Wheel Color Black
Temperature Range -50°F – 250°F
Caster Bracket Material Zinc Plated Steel
Grease Zerk Yes
Axle Zerk Axle

Product Overview:

  • Robust Construction: Built from 1/4" thick cold-rolled steel, designed to withstand the rigors of medium-duty applications.
  • Flexible Mobility: Features two total lock casters for secure stopping, and two standard swivel casters for smooth movement.
  • Versatile Applications: Perfect for carts, trucks, dollies, racks, and equipment in industries such as warehousing, hospitality, institutional, food service, and retail.
  • Customization Options: Available in rivet kingpin and kingpinless versions to meet specific needs.

Key Features:

  • High Load Capacity: Each caster can support 900 lbs, handling heavy loads with ease.
  • Phenolic Wheels: Offer durability and floor protection, ideal for various settings.
  • Enhanced Control: Brake mechanism provides stability and safety during use.
  • Durable Design: Double ball raceways ensure smooth operation and longevity.
  • OEM Preferred Series: Trusted quality and performance in industrial applications.
  • NSF Listed: Majority of the series and wheels meet NSF certification standards.
  • RoHS Compliant: Adheres to environmental and health safety standards.
  • Total Lock Casters Available: Option for complete immobilization and stability.
  • Grease Fitting in Raceway & Axle: Simplifies maintenance and extends caster life.
  • Zinc Plated: Resistance to rust and corrosion for increased durability.
  • Phenolic Wheel: As strong as steel, non-marking, and resistant to chemicals.

Product Code: HQ-2160-PL1-PHR-2TL2S
