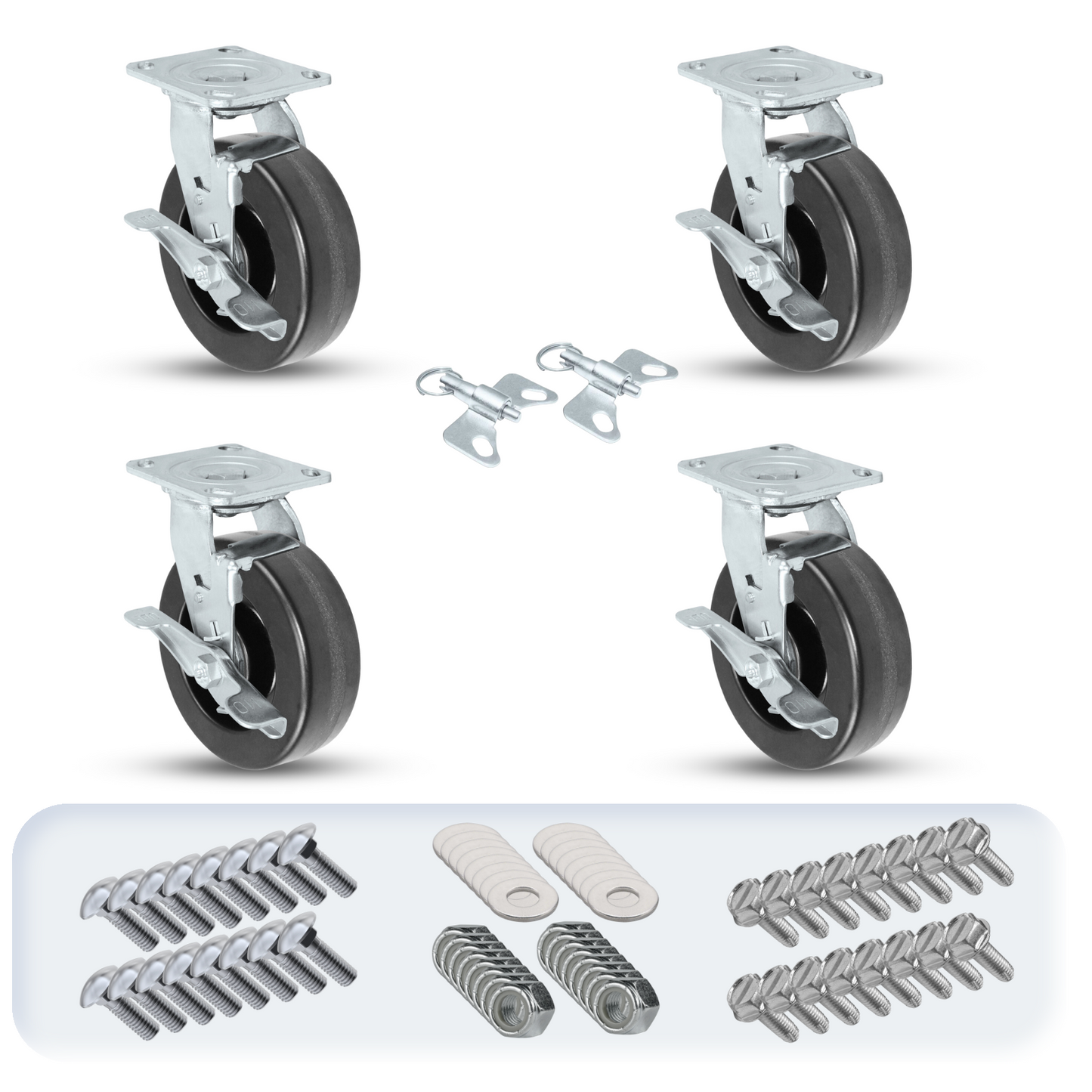

6" x 2" Phenolic Caster Set | 4 Swivels with Brakes

6" x 2" Phenolic Caster Set | 4 Swivels with Brakes

Regular price $135.99 USD
Regular price Sale price $135.99 USD
Sale Sold out
Shipping calculated at checkout.

6" x 2" Swivel Casters with Brakes - Set of 4 - Phenolic Wheel - 3,600 Lbs Capacity

Enhance your equipment's mobility with our 6-inch by 2-inch Swivel Caster Set, featuring brakes for added safety and control. Part of our Medium Duty 'HD' Series, these casters are recognized for their exceptional quality and functionality in various industries. With a remarkable 3,600 lbs total capacity, they are perfect for a wide range of medium-duty applications, offering fast delivery and competitive prices.

Technical Specifications:

Wheel Material Phenolic
Wheel Diameter 6 inches
Wheel Tread Width 2 inches
Load Capacity 800 lbs each | 3,600 lbs per set of 4
Top Plate Size 4" x 4-1/2"
Bolt Hole Spacing 2-5/8" x 3-5/8" (Slotted to 3" x 3")
Swivel Radius 4-7/8 inches (Increases with certain brake options)
Wheel Durometer 90 SHORE D (±/-5)
Mounting Bolt Size 3/8 inch
Overall Height 7-1/2 inches
Bearing Type Roller Bearing or Precision Bearing
Wheel Color Black
Temperature Range -50°F – 250°F
Caster Bracket Material Zinc Plated Steel
Grease Zerk Yes
Axle Zerk Axle

Key Features:

  • High Load Capacity: Each caster supports up to 800 lbs, totaling a 3,600 lbs capacity for the set, ideal for heavy loads.
  • Brake System: Integrated brakes ensure safety and control in various settings.
  • Phenolic Wheels: Provide durability and floor protection, suitable for a variety of surfaces.
  • OEM Preferred Series: Trusted for exceptional performance in multiple industries.
  • NSF Listed: Majority of this series and wheels comply with NSF standards.
  • RoHS Compliant: Adheres to strict environmental and health standards.
  • Double Ball Raceway with 5/8” Kingbolt: Ensures smooth movement and superior durability.
  • Total Lock Casters Available: Options for complete immobility when required.
  • Grease Fitting in Raceway & Axle: Allows for easy maintenance.
  • Zinc Plated: Offers rust and corrosion resistance for longer life.
  • Strong as Steel Phenolic Wheels: Combines strength with floor protection.
  • Non-Marking Wheels: Prevents floor damage.
  • Chemical Resistance: Highly resistant to a variety of chemicals.

Product Overview:

  • Wide Industry Application: Ideal for carts, trucks, dollies, racks, and equipment in industries such as industrial, warehousing, hospitality, institutional, food service, food processing, and retail display.
  • Durable Construction: Made from 1/4" thick cold-rolled steel, designed to withstand the rigors of medium-duty use.
  • Enhanced Mobility: Features double ball raceways and a 5/8" nut & king-pin for smooth movement and superior stability.
  • Versatile

Product Code: HQ-2060-PL1-PHR-4SB
